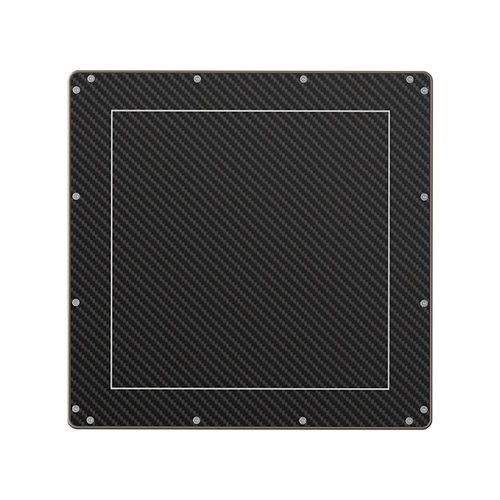

Fluoroscopy flat panel detector Mercu 0909F

portablewireless9 x 9

Product overview
Mercu 0909F is an amorphous silicon (a‑Si) dynamic flat panel detector (FPD) engineered for real‑time fluoroscopic imaging. The 9×9‑inch imaging sensor features a direct‑deposition CsI scintillator, providing improved low‑dose imaging performance. It supports up to 60 fps (2×2 mode) with a first frame lag < 3% and is designed for integration into fixed or mobile C‑arm fluoroscopic X‑ray systems for surgical and interventional use.

Features

• a‑Si sensor with direct‑deposition CsI scintillator
• 9×9‑inch active imaging area, 205 µm pixel pitch
• Distortion‑free acquisition with high signal‑to‑noise ratio (SNR)
• Switchable gain settings for variable sensitivity
• 30 fps at full resolution; 60 fps in 2×2 readout mode; first frame lag < 3%

Technical specifications

• Detector type: amorphous silicon (a‑Si) flat panel detector (FPD)
• Scintillator: direct‑deposition cesium iodide (CsI)
• Active imaging area: 9 × 9 inch
• Pixel pitch: 205 µm
• Frame rate: 30 fps (full resolution); 60 fps (2×2 readout)
• First frame lag: < 3%
• Sensitivity: switchable gain settings for variable sensitivity
• Image quality: distortion‑free imaging with high signal‑to‑noise ratio (SNR)
• Typical integration: fixed or mobile C‑arm fluoroscopic X‑ray systems; intended for surgical/interventional applications
• Imaging mode: real‑time fluoroscopic imaging
