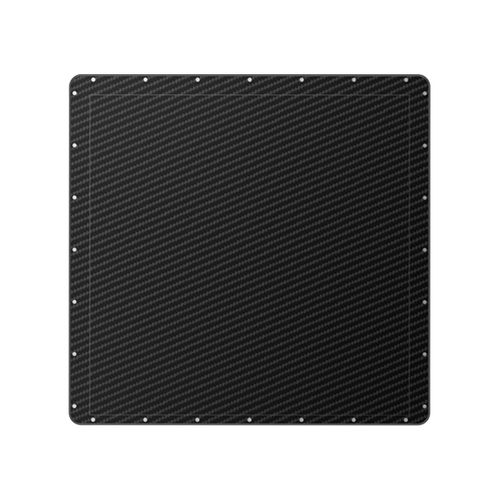

Multipurpose radiography flat panel detector Mercu 1717HS

for fluoroscopyfor CBCT imagingportable

Product description
Mercu 1717HS is a next-generation high-speed real-time a-Si TFT dynamic flat panel detector (FPD). The 17×17-inch sensor uses a direct-deposition CsI scintillator and a 139 μm pixel pitch, delivering excellent low-dose imaging performance at frame rates up to 90 fps. Integrated into fluoroscopic X-ray systems, it is suitable for general radiography, fluoroscopy and CBCT in gastrointestinal, urology, orthopedics, angiography and similar clinical applications.

Features

• Distortion-free imaging with high signal-to-noise ratio (SNR)
• 17×17-inch active area with 139 μm pixel pitch
• Frame rates: 30 fps (full resolution); 60 fps (2×2 binning); 90 fps (3×3 binning); up to 90 fps real-time

Technical specifications

• Detector type: a-Si TFT dynamic flat panel detector (FPD)
• Active area: 17×17 inch
• Scintillator: direct-deposition CsI
• Pixel pitch: 139 μm
• Frame rates: 30 fps (full resolution); 60 fps (2×2); 90 fps (3×3); up to 90 fps real-time
• Imaging: excellent low-dose performance, high SNR, distortion-free imaging
• Applications: general radiography, fluoroscopy, CBCT for gastrointestinal, urology, orthopedics, angiography and similar clinical uses
