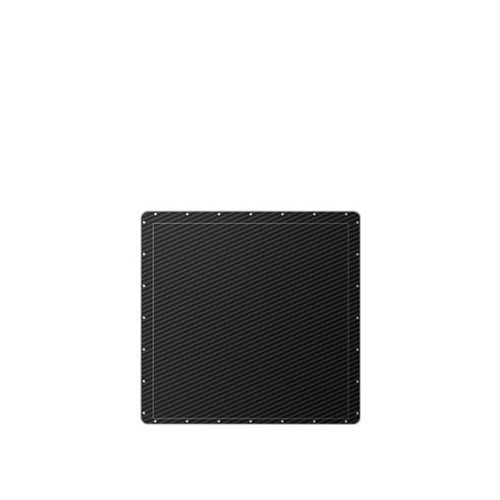

Fluoroscopy flat panel detector Mercu 0909X

portablewireless9 x 9

Product overview
Mercu 0909X is an a‑Si flat-panel detector (FPD) engineered for real-time fluoroscopic imaging. The 9×9‑inch active area incorporates a direct-deposition CsI scintillator and a 139 μm pixel pitch, delivering improved low-dose performance up to 60 fps in 2×2 mode. It is intended for integration into mobile C‑arm fluoroscopic X‑ray systems used in surgical and interventional procedures.

Features

• a‑Si sensor with direct-deposition CsI scintillator
• Distortion-free imaging with high signal-to-noise ratio (SNR)
• Switchable gain settings for adjustable sensitivity
• 9×9‑inch active imaging area, 139 μm pixel pitch
• 30 fps at full resolution; up to 60 fps in 2×2 readout

Technical specifications

• Detector type: a‑Si flat panel detector (FPD)
• Scintillator: direct-deposition CsI
• Active imaging area: 9 × 9 inch
• Pixel pitch: 139 μm
• Frame rate: 30 fps at full resolution; up to 60 fps in 2×2 mode (maximum 60 fps)
• Designed for real-time imaging in fluoroscopic systems
• Typical application: integration into mobile C‑arm fluoroscopic X‑ray systems for surgical procedures
• Low-dose imaging capability with high SNR
• Switchable gain settings for variable sensitivity
