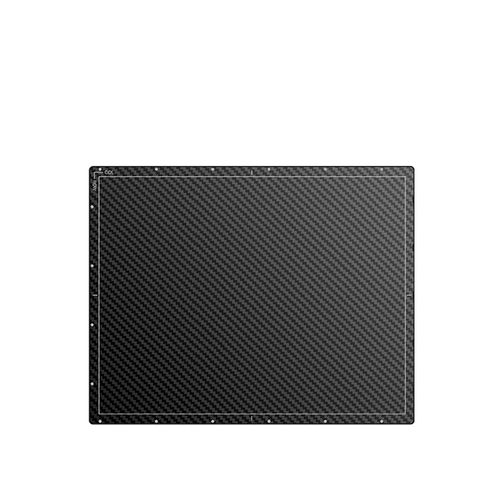

Fluoroscopy flat panel detector Mercu 1216X

for CBCT imagingportablewireless

Overview
Mercu 1216X is an amorphous-silicon (a-Si) flat panel detector with direct-deposition CsI scintillator, engineered for fluoroscopic imaging, CBCT and interventional procedures. The 12×16-inch active area supports low-dose acquisition and high frame-rate capture up to 200 fps, and the detector is suitable for integration into fixed or mobile fluoroscopic X-ray systems.

Key features

• Low clinical dose with high detective quantum efficiency (DQE)
• First-frame lag less than 5%
• Switchable gain settings for adjustable sensitivity
• Frame rates: 50 fps (full resolution); 100 fps (2×2); 200 fps (4×4)
• Multiple operating modes with selectable fields of view

Technical specifications

• Detector type: amorphous silicon (a-Si) flat panel detector
• Active area / size: 12 × 16 inch image sensor
• Scintillator: direct-deposition CsI (cesium iodide)
• Frame rate: up to 200 fps (50 fps full resolution; 100 fps in 2×2; 200 fps in 4×4)
• First-frame lag: < 5%
• Gain: switchable gain settings for variable sensitivity
• Operating modes: multiple modes with selectable field-of-view options
• Primary applications: fluoroscopic imaging, CBCT and interventional procedures
• Integration: compatible with fixed and mobile fluoroscopic X-ray systems
