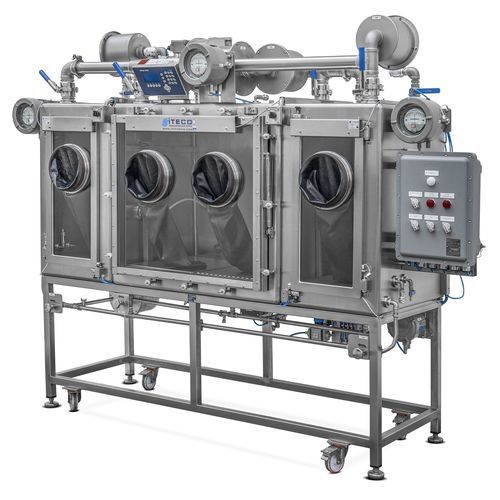

Pharmaceutical isolator Isolatore 'Ex'containmentfor emptying drumshazardous materials
Add to favorites
Compare this product
Characteristics
- Applications
- containment, for the pharmaceutical industry, for emptying drums, hazardous materials
- Type of products handled
- for toxic products, for biological products, volatile organic compound
- Configuration
- floor-standing
- Other characteristics
- stainless steel, controlled atmosphere
- External depth
700 mm
(27.56 in)- External height
900 mm
(35.43 in)- Weight
500 kg
(1,102.31 lb)
Description
Isolator 'Ex' for drum loading from column, designed for handling and processing solvents and other chemical, pharmaceutical, industrial, biological and toxic substances that may release gases presenting both toxicity and explosion/fire hazards. Suitable for installation in ATEX classified area Zone 2-22 GD.
Risks identified:
Accessories:
Product notes:
Unit under construction in our production workshop.
Characteristics / technical specifications:
Risks identified:
- Toxicity to humans
- Risk of explosion or fire
Accessories:
- Stainless steel AISI 316 lid for drum loading with nitrogen inlet and outlet, inlet for liquid discharge from the column, valves, TC connection
- Weighing system with internal base and external display
Product notes:
Unit under construction in our production workshop.
Characteristics / technical specifications:
- ATEX classification: suitable for Zone 2-22 GD
- Chamber dimensions: 1000 L x 700 D x 900 H (mm)
- Right pre-chamber dimensions: 500 L x 700 D x 900 H (mm)
- Left pre-chamber dimensions: 500 L x 700 D x 900 H (mm)
- Support dimensions: 2000 L x 700 D x 710 H (mm)
- Weight: approx. 500 kg
