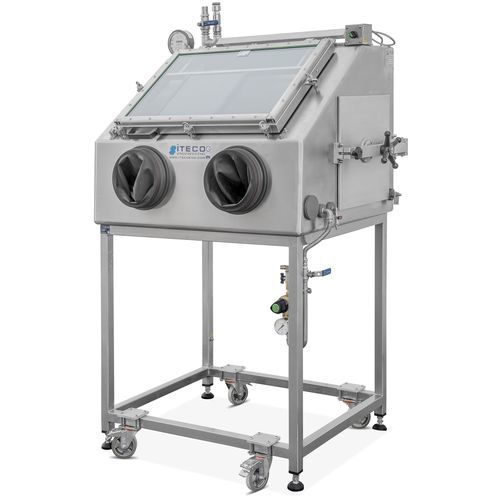

Production glove box

floor-standingshieldedstainless steel

Glove box in a controlled argon atmosphere designed for welding operations to ensure process integrity. Suitable for isolated-environment work with pressure control and protected visibility.

Main features

• Constructed in AISI 304 stainless steel
• Inclined front panel
• Support bench
• Viewing window in double-layer safety glass
• Side door
• Integrated lighting system
• Power pass-throughs
• Fluid pass-throughs
• Internal work surface isolated from the structure
• Internal protective shield glass, 9 DIN, movable
• Passage for torch/welding cables
• Automatic system for regulating operating pressure of the process gas
• Dimensions: glove-box mm 1000 x 800 x 700 H; side door mm 400 x 400; support mm 100 x 800 x 900 H; approximate weight 200 kg
• All units supplied with technical manual and pressure/functionality test report

Technical characteristics / specifications

• Material: AISI 304 stainless steel
• Operating atmosphere: Argon (controlled atmosphere)
• Internal protective glass: shielding, 9 DIN, movable
• Viewing window: double-layer safety glass
• Regulation system: automatic control of operating pressure for process gas
• Ingresses: power pass-throughs, fluid pass-throughs, torch/welding cable passage
• Lighting: integrated lighting system
• Support: support bench (support mm 100 x 800 x 900 H)
• Main dimensions: glove-box mm 1000 x 800 x 700 H; side door mm 400 x 400
• Indicative weight: approximately 200 kg
• Documentation: technical manual and test report provided
