Pharmaceutical isolator

containmentfillingfor pharmaceutical packaging

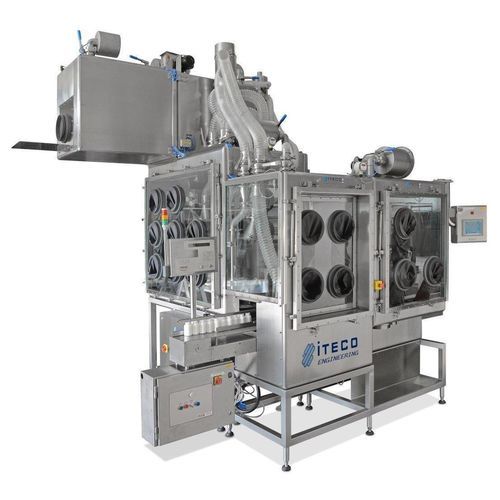

The Bottle Filler Glove-box is a containment system designed to isolate a bottle filling machine and protect the operator from powder generated during filling operations. The system provides material containment, dust capture and recovery through a dedicated extraction unit.

Construction and functionality
The containment is built in Stainless Steel 316L and comprises five distinct sections with openings for material loading and waste discharge; internal operations and interventions on the filler are carried out via special gloves mounted to flanges on the structure. The system is equipped with dust extraction and abatement to ensure protection and containment.

Chamber configuration

• Pre-chamber for loading bags containing tablets
• Working chamber for bag intake and hopper feeding, for unloading tablets into the brushing system hopper
• Central/main chamber for containment of the IMA bottle filler
• Containment chamber for bottle conveyor belt
• Containment chamber for bottle conveyor belt (reject/sampling)
• Chambers include openings for material loading, waste discharge and flanges for glove attachment to perform safe operations

Features / technical specifications

• Structure material: Stainless Steel 316L
• Number of sections: 5
• Extraction and dust abatement system for capture and recovery of residual powders
• Internal handling via special gloves fixed with flanges
• Purpose: containment of the bottle filling machine, capture of dust during filling operations and recovery of residual powders
• Pre-chamber dimensions: mm 900 x 600 x 1000 (L x D x H)
• Working chamber (1) dimensions: mm 900 x 700 x 800
• Working chamber (2) dimensions: mm 1500 x 900 x 1380
• Conveyor containment chamber (1) dimensions: mm 900 x 770 x 1500
• Conveyor containment chamber (2) dimensions: mm 1000 x 770 x 1500
• Total weight: approximately 800 kg
