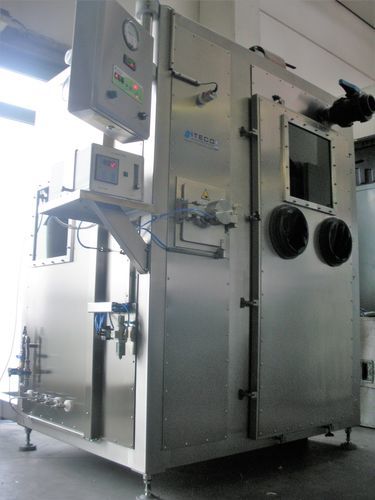

Containment glove box

with HEPA filterwith gas purification systemstainless steel

Glove box designed for laser containment in a controlled atmosphere, with a stainless steel structure and integrated systems for gas control, filtration and drying suitable for sensitive processes.

Main features:

• Stainless steel frame with removable panels for access and maintenance.
• Front wall with flanges and gloves for manipulation and laser safety glass; double-door airlock (SAS) with interlock for material transfer.
• Automatic process gas regulation system for internal atmosphere management.
• Extraction unit with H14 absolute filters and activated carbon filters on inlet and outlet for air treatment.
• Overpressure valve with intrinsic safety to protect the internal environment.
• Fluid feedthroughs and frames for cable modules located in the rear wall.
• Electric lock positioned at the top left of the front door and adjustable control panel for operational management.
• Pneumatic panel with compressed air pressure reduction unit.
• Integrated Iteco DR4 drying system, oxygen analyzer and dew point meter for humidity and atmosphere composition monitoring.

Specifications / technical details:

• Glove box dimensions (mm): 1500 x 1750 x 2000 H.
• SAS dimensions (mm): 204 x 204 x 380 L.
• Indicative weight: approximately 900 kg.
• Structure material: stainless steel.
• Air filtration: H14 absolute filters and activated carbon filters (inlet and outlet).
• Safety features: double-door interlocked SAS, intrinsically safe overpressure valve, electric lock on front door.
• Control and monitoring systems: automatic process gas regulation, adjustable control panel, pneumatic panel with pressure reducer, oxygen analyzer, dew point meter.
• Accessories and provisions: fluid feedthroughs, frames for cable modules (16 cable modules in the rear wall), integrated Iteco DR4 drying system.
