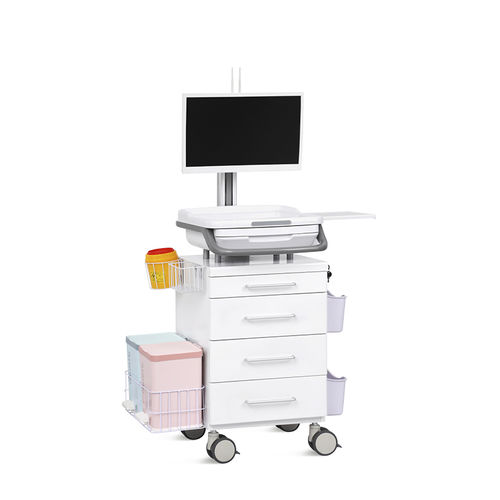

Medical computer trolley SKR-R01

for laptoptabletaccessories

Overview
The SKR-R01 Information Nursing Cart is a mobile medical workstation for bedside charting, EMR access, nursing rounds and healthcare IT workflows. It integrates a monitor mount, hidden keyboard drawer, pull-out sub-table and four lockable drawers with configurable inserts, plus integrated handles and medical-grade casters for controlled mobility.

Material
The countertop is ABS medical-grade plastic. The four-layer all-aluminum cabinet is finished with high-voltage electrostatic spraying and uses imported antibacterial plastic powder to meet medical hygiene requirements. The surface is matte and non-reflective. The cart includes an integrated die-cast aluminum handle.

Upper Column
The detachable upper column supports a monitor or all-in-one computer up to 10 kg, with 180° left/right rotation and 45° up/down tilt. It provides a 90 mm constant-force lifting stroke and 9 cm vertical adjustment. Internal cable routing keeps wiring concealed for a clean appearance.

Table Top
The ABS countertop is easy to clean and corrosion-resistant; there is no surface spraying that could react with medicines. Perimeter grooves prevent medical fluids from dripping off the surface, and a raised edge keeps items from falling.

Sub Table Top
A pull-out sub-table expands the work surface temporarily to provide additional workspace when needed.

Keyboard Drawer
Hidden keyboard drawer stores flush inside the countertop when not in use to save space.

Electromechanical Layer
The electromechanical compartment is separated from the medicine storage by more than 5 cm to improve heat dissipation and protect medicines from heat generated by equipment.

Drawers
Four large-capacity drawers. Each drawer includes removable plastic insert boards that can be combined in different layouts to store medicines of various sizes.

Handle
Ring-shaped anti-collision handle with solid metal construction and rounded corners located on the cart periphery to protect staff and equipment from impact.

Casters
4-inch dual-wheel medical-grade silent casters, all with brakes. Wheels are tested for long-term flexibility and durability.

Mounting & Adjustment
Display mounting compatibility: 75 × 75 mm and 100 × 100 mm (VESA). Constant-force lifting stroke: 90 mm.

Technical parameters
Maximum external dimension W×D×H: 520×620×1315 mm
Table size W×D: 480×60 mm
Table height from the ground: 935 mm
Weight of the whole machine: 50 KG (without computer)
External dimensions of the cabinet W×D×H: 480×460×535 mm
1st drawer inner dimension W×D×H: 390×380×40 mm
2nd, 3rd and 4th drawer inner dimension W×D×H: 390×380×60 mm
Pull-out sub-table size L×W: 260×260 mm
Display mounting hole: 75×75 mm, 100×100 mm
Constant force lifting stroke (column): 90 mm

Features / Technical specifications

• Maximum external dimension W×D×H: 520×620×1315 mm
• Table size W×D: 480×60 mm
• Table height from the ground: 935 mm
• Weight (without computer): 50 KG
• External cabinet W×D×H: 480×460×535 mm
• 1st drawer inner: 390×380×40 mm
• 2nd–4th drawer inner: 390×380×60 mm
• Pull-out sub-table: 260×260 mm
• Display mounting: 75×75 mm / 100×100 mm (VESA)
• Constant force lifting stroke (column): 90 mm
• Monitor capacity (upper column): up to 10 kg
• Wheels: 4-inch dual-wheel medical-grade silent casters with brakes
