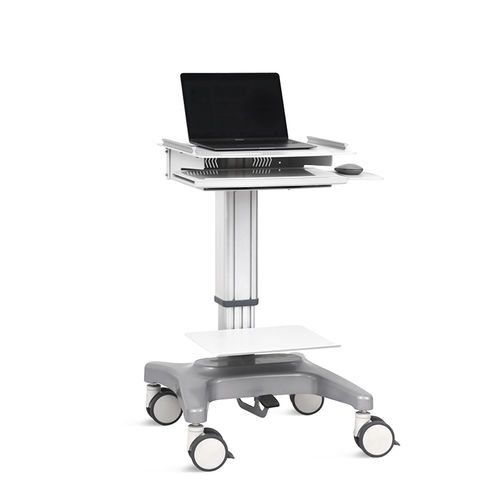

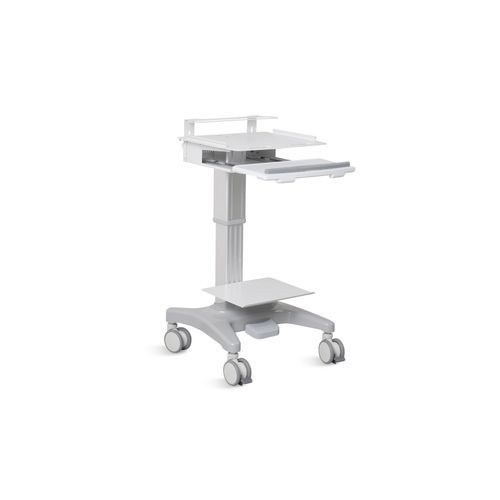

Medicine distribution computer cart SKR-R03

for tablet PCfor panel PCfor medical simulation

Product overview
The SKR-R03 Mobile Medical Workstation Cart by SAIKANG MEDICAL is a height-adjustable laptop workstation engineered for bedside documentation and EMR workflows. It provides quick sit-to-stand adjustment via a foot-operated pneumatic gas spring, an aerospace-grade aluminum alloy worktop and column, and a one-piece full cast aluminum base and handles for stable balance. The unit includes an integrated pull-out keyboard surface with a concealed expandable mouse panel and 4-inch medical-grade silent double-wheel casters with locks. The matte, non-glare finish is achieved by high-voltage electrostatic spraying to meet medical hygiene requirements.

Highlights

• Materials: Worktop and column in aerospace-grade aluminum alloy; base and handles in one-piece full cast aluminum; matte non-glare high-voltage electrostatic sprayed surface.
• Worktop: Aerospace-grade aluminum worktop, corrosion-resistant, with raised edges on both sides to prevent items from falling.
• Keyboard surface: Pull-out secondary worktop for keyboard and documents; concealed expandable mouse panel included.
• Height adjustment: Built-in adjustable gas spring with foot pedal for smooth pneumatic height changes; overall height range 725 mm–1045 mm ±10 mm.
• Lifting travel: Worktop vertical travel 320 mm ±10 mm operated by foot pneumatic lift.
• Chassis: One-piece cast aluminum chassis ensuring a low center of gravity and unit stability.
• Casters: 4-inch double-wheel medical-grade silent casters offering maneuverability and durability; lockable.

Technical parameters (table)
Overall dimensions: 530 × 520 × 725–1045 ±10 mm
Worktop dimensions: 450 × 445 ±10 mm
Secondary table dimensions: 190 × 190 ±10 mm
Keyboard base dimensions: 440 × 250 ±10 mm
Overall weight: 26 kg ±1 kg
Worktop material: Aerospace-grade aluminum alloy
Base material: One-piece full cast aluminum
Column material: Aerospace-grade aluminum alloy
Handle material: One-piece full cast aluminum
Lifting method: Foot-operated pneumatic lifting (gas spring)
Worktop lifting range: 320 mm ±10 mm
Height adjustment range (overall): 725 mm–1045 mm ±10 mm
Caster design: 4-inch medical-grade silent double-wheel casters (lockable)

Specifications

• Model: SKR-R03
• Overall dimensions: 530 × 520 × 725–1045 ±10 mm
• Worktop dimensions: 450 × 445 ±10 mm
• Secondary table: 190 × 190 ±10 mm
• Keyboard base: 440 × 250 ±10 mm
• Overall weight: 26 kg ±1 kg
• Worktop material: Aerospace-grade aluminum alloy
• Base & handle material: One-piece full cast aluminum
• Column material: Aerospace-grade aluminum alloy
• Lifting method: Foot-operated pneumatic lifting (gas spring)
• Worktop lifting range: 320 mm ±10 mm
• Height adjustment range: 725 mm–1045 mm ±10 mm
• Casters: 4-inch medical-grade silent double-wheel casters (lockable)
