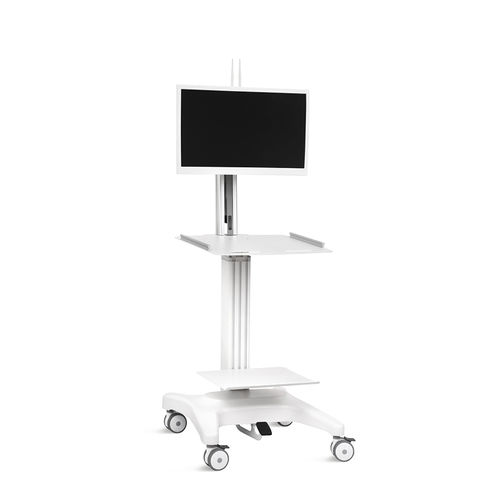

Panel PC computer cart SKR-R04

point-of-careheight-adjustable

Product overview
SKR-R04 Ward Rounds Cart is a mobile medical workstation designed for EMR access, nursing documentation and point-of-care workflows. It integrates foot-operated pneumatic height adjustment, a monitor mounting system, an integrated printer shelf for on-the-move printing of patient records, and 4-inch medical-grade silent dual-wheel casters for quiet, durable mobility. Materials and surface treatments meet medical hygiene requirements.

Highlights

• Material: Table top and column are made of aviation-grade aluminum alloy; base is one-time cast aluminum. The whole cart uses high-voltage electrostatic spray and imported environmentally friendly antibacterial plastic powder for medical hygiene. Surface finish: matte, non-dazzling.
• Upper column: Detachable upper column supports an all-in-one computer up to 10 kg; universal mount allows 180° left/right rotation and 45° up/down tilt. Column travel up/down: 150 mm with constant-force lifting adjustment; internal cable routing conceals equipment cabling.
• Table top: Aviation-grade aluminum work surface, easy to clean and corrosion-resistant, with partitioned edges to prevent items from falling. Work table size: 420×380 mm.
• Lower tray: Configurable lower tray for an on-board printer to print patient records and materials during mobile rounds.
• Lower column: Professionally tuned pneumatic rod for easy height adjustment, suitable for seated and standing use; stroke up to 200 mm.
• Chassis: One-piece cast X-shaped all-metal chassis, ensuring a stable center of gravity and level platform.
• Casters: 4-inch dual-wheel medical-grade silent casters with brakes on all wheels; tested for long-term durability and smooth maneuvering.

Technical specifications

• Dimensions (L×W×H): 530×520×730 mm (table height from ground)
• Work table (L×W): 420×380 mm
• Overall weight: 17.2 kg
• Lifting method: table lifting size 30 mm
• Caster design (summary): pneumatic rod; details: 4-inch medical-grade silent dual-wheel casters with brakes
• Lifting size (stroke): table lifting size 200 mm
• Monitor arm without constant force lifting height: 410 mm
• Monitor arm without constant force lifting bearing: 20 kg
