Medical cart SKR-R06

for monitorswith basket

Overview

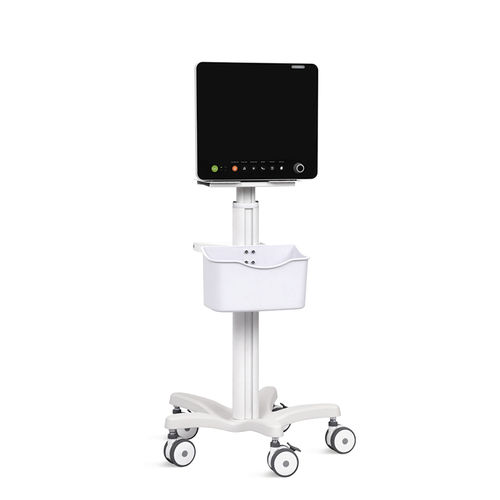

SKR-R06 ECG machine cart from SAIKANG MEDICAL features a durable aluminum alloy column, integrated ABS storage basket and a five-caster medical base designed for ECG machines, patient monitors and other diagnostic/medical equipment. The design emphasises compact footprint and stable one-piece chassis construction to support mounted devices.

Highlights

• Tabletop: Fixed tabletop with Velcro. Tabletop size can be customized according to equipment hole positions (provide corresponding monitor model and hole positions for customization).
• Basket: Fixed ABS storage basket with hooks on both sides for cable management. Basket frame is carbon steel with spray coating and position-adjustable (see technical parameters for dimensions).
• Column: Fixed one-piece aluminum alloy column for vertical support and cable routing.
• Chassis / Base: One-piece cast aluminum chassis designed for overall stability and balance. Base diameter referenced as φ550mm±10mm in chassis notes and 500mm±10mm in the technical table (see technical parameters).
• Casters: Medical-grade castors, five-wheel configuration with brakes on two wheels. Product text references 3-inch medical silent castors while the technical table lists 2.5-inch double-side castors; both sizes are noted in documentation.

Technical parameters (table)
Cart Dimensions | L500mm * W500mm * H875mm ±10mm
Tabletop Dimensions | L335mm * W365mm ±10mm
Storage Basket | Carbon steel frame with spray coating, adjustable position; Dimensions: L280mm * W160mm * H120mm ±10mm
Column Material | Aluminum alloy
Base | Carbon steel base with ABS cover, base diameter 500mm ±10mm (chassis section also references φ550mm ±10mm)
Casters | 5 pieces of 2.5-inch double-side castors, 2 with brakes (product text also references 3-inch medical-grade silent castors)

Specifications

• Model name: SKR-R06
• Cart external size: L500mm x W500mm x H875mm ±10mm
• Tabletop size: L335mm x W365mm ±10mm (customizable per equipment hole positions)
• Storage basket: L280mm x W160mm x H120mm ±10mm; carbon steel frame with spray coating; adjustable mounting position
• Column: Aluminum alloy (fixed column)
• Base: Carbon steel base with ABS cover; base diameter shown as 500mm ±10mm in technical table (chassis copy lists φ550mm ±10mm)
• Chassis design: One-piece cast aluminum for stability and balance
• Castors: 5 medical castors (silent/medical-grade), configuration includes 2 braked wheels; size referenced as 3-inch in highlights and 2.5-inch double-side castors in technical table
