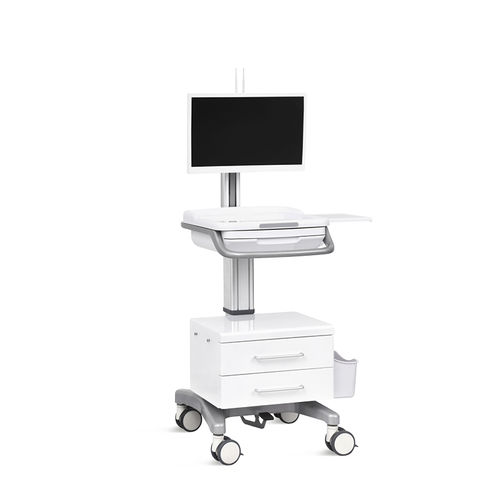

Medicine distribution computer cart SKR-R02

tabletaccessorieswith drawer

Overview

• SKR-R02 is a mobile medical workstation cart designed for bedside EMR access, nursing rounds and clinical workflows. It combines hygiene-oriented materials, concealed equipment routing and ergonomic controls: height-adjustable monitor mount, hidden keyboard drawer, two-layer secure drawers with modular inserts, integrated waste and storage boxes, extendable sub-table and an anti-collision handle.

Material

• Main surfaces use ABS medical-grade plastic; housing is an antibacterial powder-coated aluminum box. Handle and base are die-cast aluminum; column is medical-grade aviation aluminum alloy. Matte, non-reflective finishes support clinical environments and cleaning protocols.

Upper Column

• Detachable upper column supports a monitor or all-in-one up to 10 kg. VESA-compatible mount enables 180° rotation and 45° tilt. Column provides 15 cm vertical travel with constant-force adjustment; cables and equipment can be routed internally for a clean profile.

Table Top

• ABS medical-grade countertop is corrosion-resistant and easy to disinfect; perimeter grooves prevent liquid run-off and a raised edge reduces the risk of items falling.

Sub Table Top

• Pull-out sub-table expands the working area for temporary tasks or devices and stows away when not required.

Keyboard Drawer

• Hidden pull-out keyboard drawer stores the keyboard inside the countertop to save space and maintain a tidy workstation during rounds.

Electromechanical Layer

• Electromechanical components are separated from medication storage by >5 cm to improve heat dissipation and protect stored medicines.

Drawer

• Two-layer large-capacity drawers; inner layer fitted with modular plastic inserts to organise medicines and supplies by size and specification.

Handle

• Ring-shaped anti-collision solid metal handle with rounded corners positioned at the outer periphery to protect staff and equipment during movement.

Lower Column

• Professionally tuned gas spring enables smooth height adjustment for sitting or standing use with up to 20 cm stroke. Optional electric lift is available.

Chassis

• One-piece cast aluminum X-shaped chassis provides a stable centre of gravity and a level platform for reliable mobility.

Images & Brochure

• Product imagery includes multiple SKU-specific photos and a full-size brochure image for technical reference and specification overview.

Technical parameters (table)
Dimensions L×W×H: 620×540×1460mm
Work table L×W: 460×480mm
Weight of the whole machine: 45KG (without computer)
Sub-table size L×W: 260×260mm
Trolley lift stroke: 200mm
Display lifting stroke: 90mm
Caster design: 4 inch medical grade silent wheel
Cabinet parameters: two layers
Drawer dimensions: 480×340×295mm
Layer drawer inner size: 390×275×55mm
Inner size of the second-floor drawer: 390×275×140mm


Technical specifications

• Model: SKR-R02
• Application: Mobile medical workstation for bedside EMR, nursing rounds and clinical workflows
• Monitor support: up to 10 kg; 180° rotation, 45° tilt; 15 cm vertical travel (upper column)
• Materials: ABS medical-grade countertop; aviation aluminum alloy column; die-cast aluminum handle/base; antibacterial powder-coated aluminum box
• Keyboard: hidden pull-out keyboard drawer
• Storage: two-layer drawers with modular plastic inserts; integrated waste and storage boxes
• Height adjustment: gas rod stroke up to 20 cm; optional electric lift
• Chassis: one-piece cast aluminum X-shaped chassis for improved stability
• Casters: 4-inch medical-grade silent wheels
• Net weight: 45 kg (without computer)
• Desktop/work area: main top 460×480 mm; sub-table 260×260 mm
