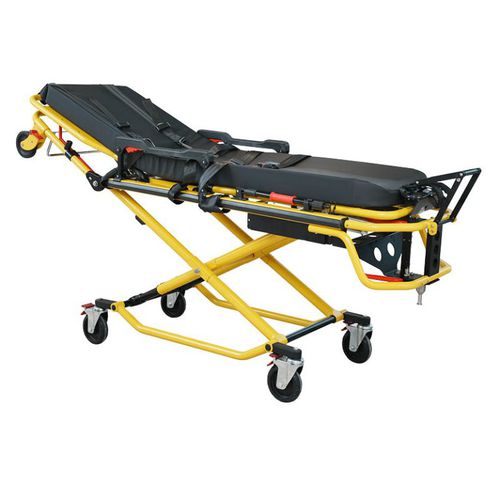

Transport stretcher trolley SKB039(G)

emergencypatient transferpneumatic

Product Overview
It conforms to ergonomics and meets the patient transfer needs. User-friendly, multifunctional and reliable design suitable for hospitals, emergency departments and patient transport applications. Key functional elements include an X-shaped (X-frame) foldable leg structure, multi-level gas-spring height adjustment, aluminium-alloy components, an oxygen cylinder holder and a waterproof PVC mattress with thick sponge for patient comfort.

Highlights

• Load capacity up to 220 kg.
• Foldable, flip-type stretcher structure made of lightweight polymer plastic for easy lifting and storage.
• X-shaped leg (outrigger) structure provides stability and lightweight lifting.
• Gas-spring controlled height and backrest adjustments with multiple levels for emergency versatility.
• Thickened sponge mattress with waterproof PVC cover (stain-resistant, easy to clean), 10 cm thickness.
• Four universal 6-inch caster wheels with brakes; wheels made of environmentally friendly PP material (shock-absorbing and wear-resistant).
• IV pole with humanized adjustable height and buckle-style folding design (maximum adjustable length 80 cm).
• Includes oxygen cylinder bracket and stretcher fixing lock.

Design & Components
The stretcher is designed for ergonomic patient transfer: aluminum-alloy structural components for strength and durability; plastic (polymer) flip-type stretcher surface for light weight and foldability; X-frame leg structure for stability; vest-style three-point safety belt for secure transport.

Technical parameters
Unfolded Dimensions (L×W×H): 2000×560×1170mm (±10mm)
Folded dimensions (L×W×H): 2000×560×380mm (±10mm)
Length adjustment: 1450-2000 mm
Height adjustment: 510mm, 600mm, 680mm, 770mm, 840mm, 900mm, 940mm, 990mm
Bed height: 58cm±5
Height adjustment range: 51cm, 60cm, 68cm, 77cm, 84cm, 90cm, 94cm, 99cm
Backrest angle: 0-75° (±5°)
Leg angle: 0-20° (±5°)
X-type outriggers: X-type outriggers (standard)
Load capacity: ≤ 220KG
Requires 2 operators: (not specified)
Main materials: Aluminum alloy

Technical configuration
Casters: 6-inch wheels × 4 with brakes
Straps: One chest plate with metal buckles; one leg strap
Mattress (thickened sponge with waterproof PVC, thickness 100mm): 1 pc
Telescopic salt water shelf (2-section, with a maximum adjustable length of 71cm): 1 unit
Stretcher Fixing Lock: 1 set
Oxygen cylinder bracket: 1 pc

Specifications / Technical specifications

• Model: SKB039(G)
• Brand: SAIKANG MEDICAL
• Unfolded size: 2000×560×1170mm (±10mm)
• Folded size: 2000×560×380mm (±10mm)
• Length adjustable: 1450–2000 mm
• Height positions (legs/backrest): eight selectable levels (510–990 mm positions as listed)
• Backrest angle: 0–75° (±5°)
• Leg angle: 0–20° (±5°)
• Load capacity: ≤ 220 kg
• Main material: Aluminum alloy
• Mattress: 100 mm thick sponge with waterproof PVC cover
• Wheels: 4 × 6-inch universal PP wheels with brakes
• Includes: IV pole (max 80 cm adjustable), telescopic salt water shelf (max 71 cm), stretcher fixing lock, oxygen cylinder bracket, safety (vest-style 3-point) belt
