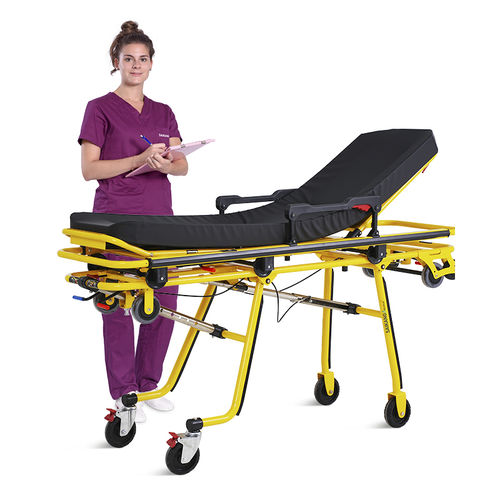

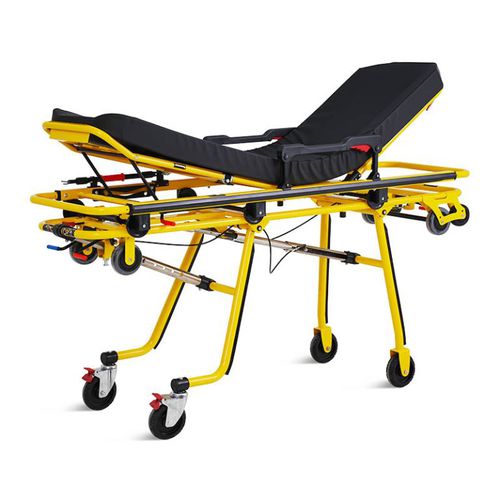

Transport stretcher trolley SKB039(H)

emergencypatient transferfor ambulances

Overview
SKB039(H) Stretcher trolley provides a detachable stretcher surface with locking device, single-operator handling via a mechanical folding-leg mechanism, multiple preset height positions, a waterproof 100 mm PVC-thick sponge mattress and a high load capacity suitable for hospital, emergency and ambulance use.

Design & Construction
Ergonomically designed to facilitate safe patient transfer and multi-function use. The frame is manufactured from high-strength aluminum alloy with stainless steel components, offering a compact, lightweight and corrosion-resistant structure. Argon gas shielded welding ensures well-formed weld seams and a smooth finish.

Safety & Stability
A compliant suspension system mitigates overturning when pressure distribution varies across the stretcher surface. A self-adjusting mechanism balances weight during boarding and alighting to prevent forward movement while loading. The H-shaped leg geometry ensures stability across varied patient positions. Flip-up guardrails in high-density polymer protect the patient during transfer.

Operational Features

• Detachable stretcher surface with locking device
• Single-person operation via mechanical folding-leg mechanism (rear-handle controlled)
• Height adjustable to multiple preset positions for safe boarding and ambulance platform alignment
• Low-profile chassis enabling ground-level movement and lift-for-walk function
• Folding leg mechanism automatically retracts during boarding to enable one-person operation

Included items / Configuration summary

• Mattress: waterproof PVC covering, thickened sponge 100 mm (1 pc)
• Casters: 4 × 6-inch wheels (2 with brakes)
• Straps: 1 chest strap and 1 leg strap
• IV pole (scalable): 1 unit
• Stretcher fixing lock: 1 set

Technical parameters
Unfolding size (L×W×H): 1950×570×910mm (±10mm)
Folding size (L×W×H): 2030×570×300mm (±10mm)
Height adjustment positions: 78 cm, 87 cm, 91 cm
Backrest angle: 0–75° (±5°)
Leg angle: 0–15° (±5°)
H-shaped legs: yes
Load capacity: ≤ 220 kg
Single-staff operation: yes
Detachable stretcher surface with locking: yes
Materials: aluminum alloy, stainless steel; argon gas shielded welds

Applications
Suitable for hospital wards, emergency departments, ambulance platforms and other patient-transfer scenarios requiring a stable, easily operated stretcher trolley.

Specifications / Technical data

• Model: SKB039(H)
• Unfolded dimensions: 1950×570×910mm (±10mm)
• Folded dimensions: 2030×570×300mm (±10mm)
• Height positions: 78 cm / 87 cm / 91 cm
• Backrest angle: 0–75° (±5°)
• Leg angle: 0–15° (±5°)
• Load capacity: ≤ 220 kg
• Casters: 4 × 6-inch wheels (2 with brakes)
• Mattress: waterproof PVC, 100 mm thick sponge
• Construction: high-strength aluminum alloy + stainless steel; argon gas shielded welds
• Features: detachable stretcher surface with locking, compliant suspension, self-adjusting system, folding-leg mechanism for single-person operation, flip-up polymer guardrails
