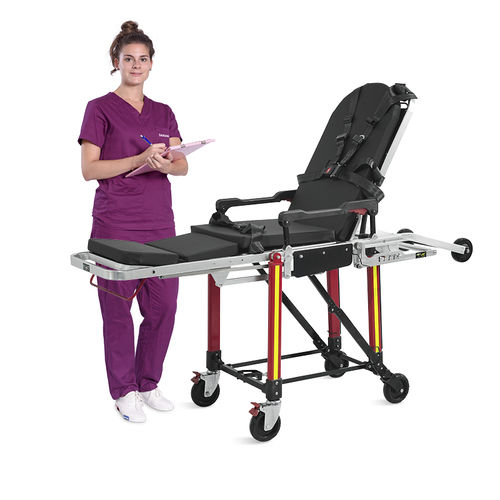

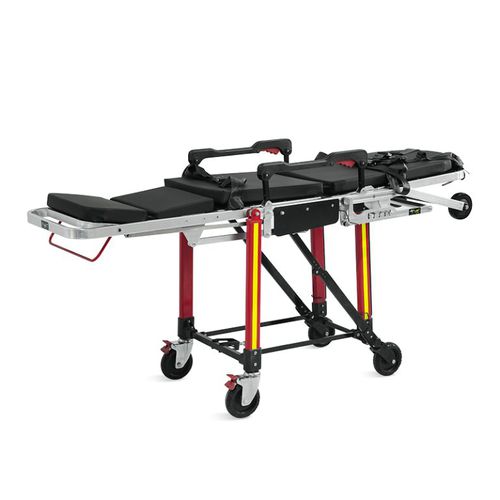

Transport stretcher trolley SKB039(F)

emergencypatient transferfor ambulances

Overview

• Convertible chair-to-stretcher transport system designed for ambulances, emergency departments and patient transport applications.
• Ergonomically designed for ease of use and versatile reliability; supports one-person operation.
• Quick convertibility into a seat with 4 different angle positions.

Design
Ergonomically designed to meet patient transfer needs; compact size and lightweight construction facilitate use in narrow spaces and elevators. Length adjustment uses a bayonet-type synchronous folding mechanism suitable for confined environments.

Materials & Structure

• Main materials: high-strength aluminum alloy — durable and rust-free.
• Aluminum alloy breathable back panel for firm support.
• Nylon inverted guardrails to facilitate patient boarding and alighting.

Comfort & Mattress
Double-layer seamless PU mattress, thickness 50mm, designed for patient comfort and easy cleaning.

Backrest & Adjustment
Air-bar-assisted backrest with gas-spring support allowing rapid movement from seated to semi-recumbent or horizontal positions for CPR or intubation. Backrest gas spring adjustment supports multiple angles; maximum adjustable backrest angle up to 80°.

Length & Folding
The stretcher supports length adjustment (synchronous bayonet folding mechanism) with selectable lengths to adapt to narrow spaces. The low-frame structure allows ground movement as well as lift-and-walk operation.

Leg & Safety Features
When unloaded from vehicle, stretcher legs open automatically. Diagonal support provides double-insurance anti-folding. Diamond reflective strips are affixed to the legs to improve night-time rescue safety.

Operation
Designed for one staff member operation. Convertible seat with 4 gears for angle position changes. Back plate and side rails engineered to provide firm support and safe patient handling.

Notes on Load Capacity
Material section indicates a maximum load capacity up to 280kg. The technical parameters table on the page lists load capacity as ≤ 220KG. Both values are retained here as reported on the source page.

Included / Optional Components

• Seamless PU mattress (double layer, 50mm) — 1 pc.
• 6-inch wheels × 4 (2 with brakes).
• Vest-style metal buckle strap and one leg strap.
• Scalable salt water rack (2-stage design, max adjustable length 710mm) — 1 unit.
• Stretcher fixing lock — 1 set.
• Oxygen cylinder holder — 1 pc (optional).

Specifications / Technical data

• Unfolding size (L×W×H): 1920×570×825mm (±10mm)
• Folding size (L×W×H): 2000×570×260mm (±10mm)
• Length adjustment: 1920mm, 1300mm
• Backrest angle: 0-80° (±5°)
• Main materials: Aluminum alloy
• Convertible seat type: 4 gears
• Load capacity: ≤ 220KG (technical parameters table) — material section also reports up to 280kg
• Operation: One staff member required
• Mattress: Double layer PU seamless, thickness 50mm
• Casters: 6-inch wheels × 4 (2 brakes)
• Strap: 1 vest style metal buckle strap; one leg strap
• Scalable salt water rack: 2-stage design, max adjustable length 710mm
• Stretcher fixing lock: 1 set
• Oxygen cylinder holder: 1 pc (optional)
