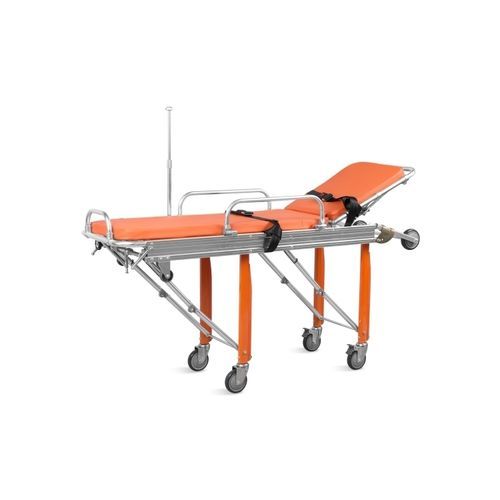

Ambulance stretcher trolley SKB039(D)

mechanicalfoldingfoldable

Product overview
SKB039(D) ambulance stretcher trolley designed for emergency medical services and patient transport. Features one-person operation, adjustable backrest 0-60°, waterproof 60 mm PVC mattress, ambulance fixing/locking system and aluminum alloy construction for reduced weight and corrosion resistance.

Highlights

• Backrest lift 0-60° to improve patient positioning
• One-person operation with mechanical folding legs controlled by handles at both ends
• Fixing devices for secure locking inside the ambulance
• Aluminum alloy frame with die-cast components: lightweight and corrosion-resistant
• 5-inch silent swivel casters with universal brake (4 wheels, 2 with brake) for smooth movement
• Artificial leather cover: easy to clean, abrasion and folding resistant, acid and alkali resistant
• Two safety belts for patient restraint
• Telescopic stainless-steel IV pole with high load capacity
• Aluminum alloy foldable guardrail for safe patient access
• Waterproof PVC mattress, thickness 60 mm

Function & Operation
The mechanical folding legs are operated from handles at both ends, allowing rapid lowering when loading into an ambulance. The safety lock secures the stretcher during transport and releases for ambulance loading.

Included components / Configuration
Casters: 5-inch wheels × 4 (2 brakes). Straps: 2 pcs. Mattress: Waterproof PVC, thickness 60 mm, 1 pc. Stretcher fixing lock: 1 set.

Technical specifications

• Unfolded size (L×W×H): 1900×550×1000 mm (±10 mm)
• Folded size (L×W×H): 1900×550×390 mm (±10 mm)
• Backrest angle: 0-60° (±5°)
• Main materials: Aluminum alloy
• Load capacity: ≤ 159 kg
• Operating personnel: One staff member required
• Casters: 5-inch wheels × 4 (2 brakes)
• Straps: 2 pcs
• Mattress: Waterproof PVC, thickness 60 mm (1 pc)
• Stretcher fixing lock: 1 set
