Waiting room beam chair SKE011-1

with armrestsergonomic3-seater

Overview

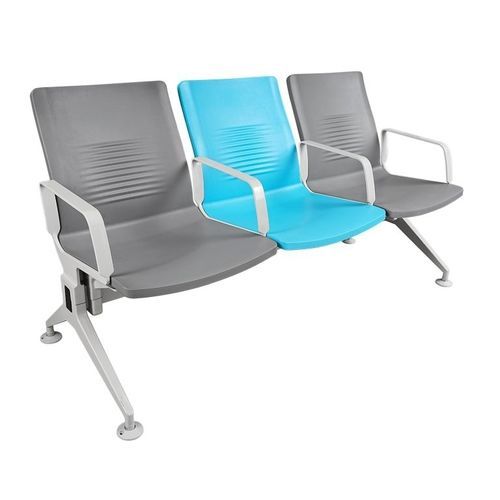

The SKE011-1 Treat-Waiting Chair is a 3-seat waiting chair designed for hospitals, clinics and outpatient areas. It combines integrated PU seating, aluminum-alloy armrests with PU pads, a powder-coated steel beam and aluminum-alloy seat support frames to provide high load capacity, easy cleaning and corrosion resistance.

Highlights

• Three-seat layout with one-piece seat and back panels to eliminate exposed screws and simplify cleaning.
• PU seating: high-density polyurethane; standard PU colours available on request.
• Seat design reduces gaps between seats and integrates armrests to minimise entrapment risks for children.
• Armrests: die-cast aluminum-alloy with wear-resistant electrostatic epoxy powder coating and high-density PU padding for comfort and thermal neutrality.
• Seat support: each seat fitted with two aluminum-alloy die-cast brackets (300mm × 35mm × 119mm) with dedicated fixing clips; surface coated with wear-resistant electrostatic epoxy powder; per-seat maximum load 250 kg.
• Crossbar (beam): high-strength cold-rolled steel tube 80mm × 40mm × 1.5mm, powder-coated with wear-resistant electrostatic epoxy powder for good load-bearing capacity and a smooth finish.
• Backrest: ergonomic wave-like water-ripple profile to follow body contours, provide elasticity and relieve pressure; resistant to deformation and damage under frequent use.
• Easy maintenance: seamless armrest-seat interface, no exposed fasteners, reduced debris accumulation.

Technical parameters
Overall dimensions (3-seater): 1630×665×850mm±10
Center distance: 530±10mm
Seat width: 520±10mm
Seat depth: 460±10mm
Seat height from ground: 430±10mm
Seat top depth: 630±10mm
Seat top height from ground: 850±10mm
Armrest top height from ground: 632±10mm
Weight: 52.5 KG per unit

Additional notes
Aluminum-alloy components are die-cast and finished with a wear-resistant electrostatic epoxy powder coating to enhance corrosion and aging resistance. The design avoids exposed fasteners to reduce dirt accumulation and support hygiene and a professional appearance appropriate for medical waiting areas.

Specifications

• Model: SKE011-1 (3-seat waiting chair)
• Seat material: high-density polyurethane (PU), colour optional
• Armrests: die-cast aluminum-alloy with PU padding; wear-resistant electrostatic epoxy powder coating
• Seat support frame: aluminum-alloy die-cast brackets 300mm × 35mm × 119mm; per-seat maximum load 250 kg
• Crossbar: 80mm × 40mm × 1.5mm cold-rolled steel tube with wear-resistant electrostatic epoxy powder coating
• Backrest design: ergonomic wave-like water-ripple shape with good elasticity and durability
• Overall dimensions (3-seater): 1630×665×850mm±10
• Center distance: 530±10mm
• Seat width: 520±10mm
• Seat depth: 460±10mm
• Seat height from ground: 430±10mm
• Seat top depth: 630±10mm
• Seat top height from ground: 850±10mm
• Armrest top height from ground: 632±10mm
• Weight: 52.5 KG per unit
