Waiting room beam chair SKE011-6

adultwith armrestsergonomic

Overview

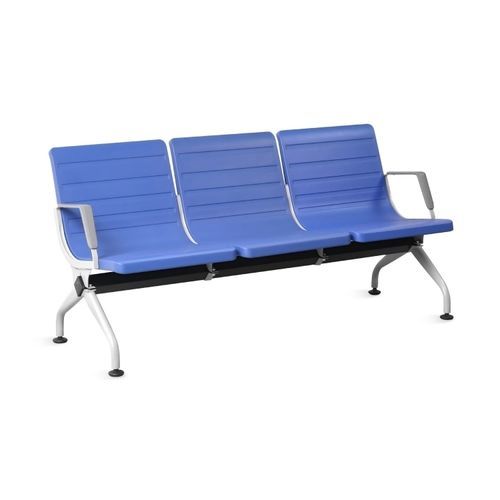

SKE011-6 TREAT-WAITING CHAIR is a three-seat waiting chair designed for hospitals, clinics, outpatient departments and healthcare waiting areas. It integrates high-density PU seating with an internal steel frame, a powder-coated steel beam construction and polypropylene armrest surfaces for hygiene, ease of cleaning and long-term dimensional stability.

Design
The overall design is simple and ergonomic, based on human body dimensions to maintain posture support and resist deformation after prolonged use.

Armrest leg
Material: high-quality steel tube components with wear-resistant electrostatic epoxy powder coating. Armrest tops are injection-molded polypropylene (PP) providing a comfortable, non-cold touch and a continuous, cleanable surface.

Backrest
The contoured backrest follows body curves to relieve pressure. Materials and bonding provide good elasticity and resistance to deformation, wrinkling, cracking or breaking under frequent use in clinical environments.

Seat and backrest
Integrated seat and backrest design with controlled gaps between panels. Joints between armrests and seat panels are finished to eliminate pinch points. No exposed screws on the seat surface simplify cleaning and improve hygiene.

Material & Comfort
Seat panel visible thickness: 28–38 mm; molded high-density polyurethane (PU) with an internal steel frame (steel frame standard: Q235). Seat PU density: ≥400 kg/m³. Surface hardness resists incidental scratches, scraping and impact while maintaining appropriate elasticity for patient comfort.

Crossbar
Crossbar material: high-strength cold-rolled steel tube 60 × 60 × 1.5 mm with wear-resistant electrostatic epoxy powder coating, providing strong load-bearing capacity, stability and a smooth surface that limits debris accumulation.

Commercial & Service Information
Warranty: standard 1-year warranty (parts and repair support for manufacturing defects within 1 year). 1% spare parts provided per order. Post-warranty technical support available; parts may be chargeable. Delivery time: standard 28 days. Payment terms: L/C, T/T, D/P and credit (subject to customer verification). OEM/custom projects supported by the manufacturer's R&D team.

Caractéristiques / Spécifications techniques

• Overall dimensions (3-seater): 1655 × 640 × 820 mm ±10
• Center distance: 540 ±10 mm
• Seat width: 520 ±10 mm
• Seat depth: 470 ±10 mm
• Seat height from the ground: 440 ±10 mm
• Seat top depth: 660 ±10 mm
• Seat top height from ground: 805 ±10 mm
• Armrest top height from the ground: 625 ±10 mm
• Gross weight: G.W. 39.6 KG / set
• Seat material: high-density PU (appearance thickness 28–38 mm) with internal steel frame (Q235)
• Seat PU density: ≥400 kg/m³
• Armrest surface: polypropylene (PP) injection molded
• Frame / crossbar: cold-rolled steel pipe 60 × 60 × 1.5 mm with electrostatic epoxy powder coating
• Finish: wear-resistant electrostatic epoxy powder coating on metal parts
