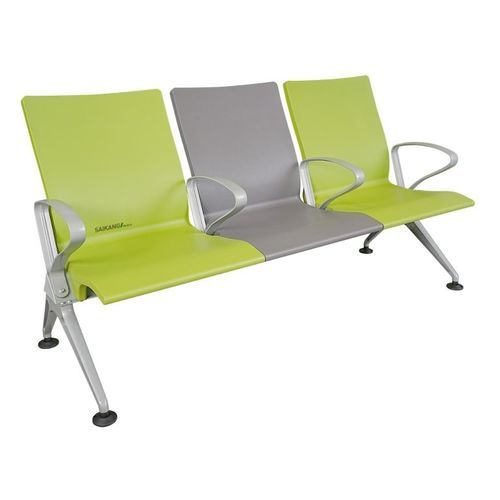

Waiting room beam chair SKE011-2

with armrests3-seater

Overview
SKE011-2 Treat-Waiting Chair is a three-seat waiting chair designed for hospitals, clinics, outpatient departments and healthcare waiting areas. Key features include PU (polyurethane) seating, reinforced structural crossbars and aluminum alloy armrests.

Highlights

• Support frame: Side brackets for seat and backrest are made of ≥1.5mm cold-rolled square steel, providing a load-bearing capacity up to 250kg.
• Design: Seat and backrest are continuous with a fixed inclination when installed. Gaps between seat panels are controlled at 4mm–6mm to ensure aesthetics, prevent debris accumulation and facilitate cleaning while avoiding entrapment of children’s hands and feet. Adjacent backrests are spaced for visual alignment.
• Armrest leg: High-strength aluminum alloy die-cast construction with wear-resistant electrostatic epoxy powder coating. Armrest installation does not reduce seat width; armrests have appropriate length and smooth curves to minimize risk of clothing entanglement.
• Crossbar: Made of ≥330*1.2mm steel plate with no fewer than seven welded reinforcing plates sized ≥150*110*1.5mm. Mounting holes are punched on the crossbar and ends are sealed with plastic plugs.
• PU: PU seating with standard PU color card options available.

Materials & Finish

• Seat and back: PU (polyurethane) panels, continuous seat/back design.
• Side brackets: ≥1.5mm cold-rolled square steel.
• Armrests: High-strength aluminum alloy die-cast with electrostatic epoxy powder finish.
• Crossbar: ≥330*1.2mm steel plate with welded reinforcing plates; ends sealed with plastic plugs.

Applications
Suitable for hospitals, clinics, outpatient departments and other healthcare waiting areas.

Specifications

• Overall dimensions (3-seater): 1780*710*900±10mm
• Center distance: 570mm±10mm
• Seat width: 520-565mm±10mm
• Seat depth: 475mm±10mm
• Seat height from the ground: 420mm±10mm
• Seat top depth: 710mm±10mm
• Seat top height from ground: 900mm±10mm
• Armrest top height from the ground: 595±10mm
• Weight: 52.5KG/roll
