Waiting room beam chair SKE011

with armrests3-seater

Overview

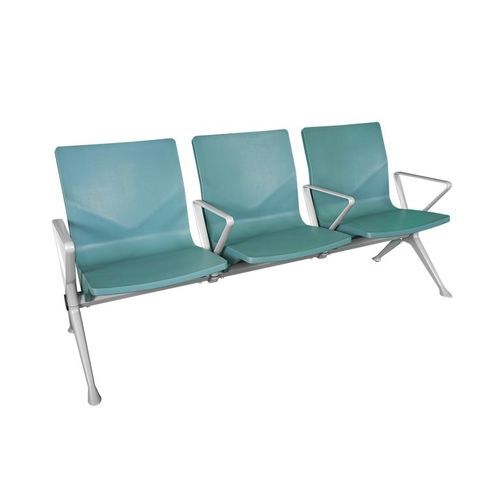

SAIKANG MEDICAL SKE011 treatment waiting chair is a 3-seat seating unit designed for hospitals, clinics, outpatient departments and healthcare waiting areas. It features PU-upholstered seats, robust metal structure and concealed non-slip foot pads for hygienic, low-noise operation.

Highlights

• Seat support frame: Integrated iron frame and 1.2 mm cold-rolled steel plate formed by mold cold pressing and welded; precision-punched on high-speed CNC punch press. Load capacity up to 250 kg.
• Armrest & legs: Die-cast aluminum alloy armrests with electrostatic powder coating; armrest length 385 mm; armrest top height 600 mm; chair leg length 620 mm. Armrest profile inverted-triangle; chair legs shaped like a golf club. Concealed non-slip foot pads for floor grip, noise reduction and hygiene.
• Crossbar: Load-bearing beam made from 60 mm diameter, 2.0 mm thickness hexagonal steel tube; drilled, de-rusted and electrostatic powder coated for durability and easy cleaning.
• Adjustable foot pads: Built-in PP foot pads for leveling and protection.
• Fasteners: Seat back and beam connected with M8×25 flat-head hex screws and M10×80 round-head hex screws for secure assembly.
• Upholstery (PU): Standard PU upholstery with optional color selections from the PU color card.

Parameters & Configuration
Overall dimensions (3-seater with armrest): 1770L × 605W × 845H ±5 mm
Center distance: 605 mm ±10 mm
Seat width: 520 mm ±10 mm
Seat depth: 450 mm ±10 mm
Seat height from ground: 440 mm ±10 mm
Seat top depth: 605 mm ±10 mm
Seat top height from ground: 845 mm ±10 mm
Armrest top height from ground: 600 ±10 mm
Weight: 52.5 kg/roll

Technical specifications

• Model: SKE011
• Brand: SAIKANG MEDICAL
• Load capacity: up to 250 kg
• Frame material: 1.2 mm cold-rolled steel plate and iron frame, cold-pressed and welded
• Crossbar: 60 mm diameter, 2.0 mm thickness hexagonal steel tube
• Armrest material: die-cast aluminum alloy with electrostatic powder coating
• Armrest length / Armrest top height: 385 mm / 600 mm
• Chair leg length: 620 mm
• Seat upholstery: PU (color optional)
• Foot pads: built-in PP, non-slip and concealed
• Fasteners: M8×25 flat-head hex screws; M10×80 round-head hex screws
• Overall dimensions (3-seat): 1770 × 605 × 845 mm (± tolerances as specified)
• Net weight: 52.5 kg
