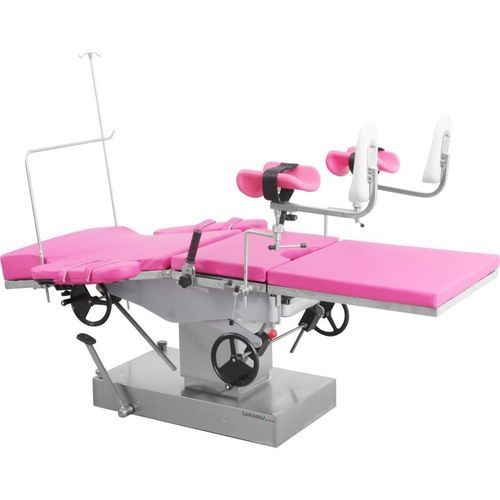

Delivery bed A105

manualhydraulicTrendelenburg

Product overview
The A105 Obstetric Table is a manual delivery and obstetric table designed for labor, delivery and OB/GYN procedures in maternity hospitals, delivery rooms and gynecology wards. The base seat and upright column cover are manufactured in 304 stainless steel to resist corrosion and facilitate cleaning. A connected main bed and a removable, rotatable auxiliary table support common delivery-room workflows.

Key features

• 304 stainless steel structure for base and column cover for corrosion resistance and simplified cleaning
• Connected main and auxiliary table: auxiliary table can be rotated and removed to adapt to labor, delivery and postpartum care
• Rotary brake device for movement, positioning and stable fixation during preparation and procedures
• Foot-step hydraulic elevating system (manual, no electricity required) with imported Y-type sealing ring for long service life
• Manual handwheel adjustment for fine positioning and low maintenance
• One-piece seamless high-density memory foam mattress for patient comfort and easier decontamination
• Stainless steel waste/collection basin for routine cleaning and fluid management
• Cushioned leg supports, hand bars and arm supports to assist patient positioning during delivery and examinations
• Accessory configuration adapted to basic maternity rooms, women’s health centers and obstetric care projects

Technical configuration (table)

• Arm support with cushion: 2 pcs
• Hand bars: 2 pcs
• Leg support with cushion: 2 pcs
• Stainless steel waste basin: 1 pc

Technical parameters (table)

• External size (L×W×H): 1900 × 600 × 700 mm ±10 mm
• Height adjustment stroke: 700–950 mm ±10 mm (foot-step hydraulic)
• Reverse Trendelenburg: 10° ±3°
• Trendelenburg: 20° ±3°
• Back plate up: 50° ±3°
• Back plate down: 10° ±3°
• Leg plate evagination: 90° ±3°
• Safe working load: ≥ 225 kg

Applications
Suitable for delivery rooms, labor rooms, maternity wards and basic obstetric/gynecological procedure areas where a durable, low-maintenance manual obstetric table is required.

Technical specifications

• Model series: A105
• Material: 304 stainless steel base seat and upright column cover
• Size (L×W×H): 1900 × 600 × 700 mm ±10 mm
• Height adjustment: 700 to 950 mm ±10 mm (foot-step hydraulic)
• Trendelenburg: up to 20° ±3°; Reverse Trendelenburg: up to 10° ±3°
• Back plate angle: up to 50° ±3° (up) and 10° ±3° (down)
• Leg plate evagination: 90° ±3°
• Safe working load: ≥ 225 kg
• Adjustment modes: foot-step hydraulic elevating system and manual handwheel
• Mattress: one-piece seamless high-density memory foam mattress for easy cleaning
• Accessories included: 2 arm supports with cushion, 2 hand bars, 2 leg supports with cushion, 1 stainless steel waste basin
• Positioning aid: rotary brake device for stable table positioning
