Delivery bed A99-13

electricheight-adjustable3-section

Overview

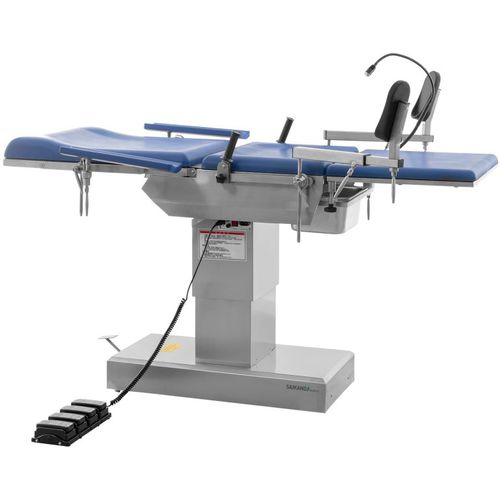

The A99-13 electric obstetric bed is a multifunction delivery and maternity-care platform intended for labour, delivery, examination and maternity ward use. It features a 304 stainless steel chassis, a waterproof seamless PU mattress, electric positioning with foot-pedal control, integrated LED gynecological examination light, adjustable and rotating supports, foldable pull handles, dual leg supports and a battery backup system. The bed is designed for routine clinical use in delivery rooms and OB/GYN departments with a safe working load ≥ 275 kg.

Key Features

• 304 stainless steel base/chassis cover for strength, corrosion resistance and easy cleaning
• Waterproof, seamless polyurethane (PU) foam mattress suitable for routine disinfection
• Electric height and position adjustment with foot pedal controller for hands-free operation
• Foot pedal brake system: press to release inner castors; lift to lock bed to the floor
• Battery backup providing approximately 80–120 complete operation cycles (usage-dependent)
• Integrated LED gynecological examination light for OB/GYN procedures
• Dual leg supports plus optional additional leg-support configurations for delivery/gynecological use
• Leg plate outward rotation: 90° ±3°; armrest outward rotation: 180° ±3°
• Detachable 90° rotating auxiliary plate for flexible setup
• Foldable pull handles to assist patient mobilisation and positioning

Additional product details

• Foot controller (pedal switch) enables convenient hands-free positioning during examination and delivery preparation
• Stainless steel waste basin and anesthesia screen frame available in standard configuration options
• Configurable accessories include armrests, hand grip bars and other clinical supports to meet different workflows
• Designed as a platform for coordinated maternity room equipment planning (lighting, monitoring, suction, trolleys and procedure-support equipment)

Technical specifications

• Material: chassis cover 304 stainless steel; mattress polyurethane (PU)
• Size (L × W × H): 1860 × 600 × 730 mm ±10 mm
• Height adjustment range: 730 – 980 mm ±10 mm
• Trendelenburg / Reverse Trendelenburg: 22° ±3° / 22° ±3°
• Back plate up: 50° ±3°
• Seat plate up: 16° ±3°
• Leg plate outward rotation: 90° ±3°
• Armrest outward rotation: 180° ±3°
• Safe working load: ≥ 275 kg
• Standard technical configuration: Armrest 2 pcs; Hand Grip Bar 2 pcs; Leg Support 2 pcs; Anesthesia Screen Frame 1 pc; Stainless Steel Waste Basin 1 pc; Foot Controller (Pedal Switch) 1 pc; LED Gynecological Examination Light 1 pc
