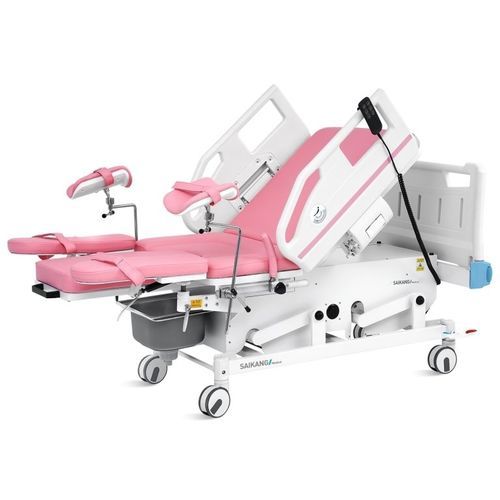

Delivery bed A98-4

electricheight-adjustableon casters

Product Overview
A98-4 Electric Obstetric Bed is a multifunctional electric delivery and maternity-care bed designed for labour, delivery, gynecological procedures and maternity ward workflows. It offers powered height adjustment and positioning, detachable bed surfaces for cleaning, modular delivery-room accessories and configurations suited to high-turnover clinical environments.

Main Features

• Powder-coated steel base and height-adjust mechanism for corrosion resistance and easy cleaning
• Detachable plastic-steel bed surface with removable cover to facilitate disinfection
• ABS headboard and ABS side rails with safety-lock design for patient protection and transfer
• Electric positioning via hand controller for rapid, accurate adjustments during care
• Detachable hand bars to support patient positioning and labour preparation
• Detachable leg supports and leg holders for OB/GYN positioning and delivery procedures
• Retractable foot section to convert the bed for gynaecological and delivery use
• Movable high-density memory-foam mattress to improve patient comfort and room turnover
• Stainless-steel sewage basin and obstetric accessories included for delivery-room configuration
• 5" central-controlled double-side castors with TPR tyres for smooth movement and wear resistance
• Design supports routine maternity-room cleaning, patient transfer and delivery workflows

Procurement & Project Value
The A98-4 can act as the central delivery/OB platform in coordinated maternity ward procurement. It integrates with delivery lighting, monitoring, suction and newborn care equipment, simplifying specifications, installation and daily workflows in delivery suites and maternity wards.

Technical Parameters (table)
External size (L×W×H): 2050 × 960 × 640 mm ±10 mm
Height adjustment stroke: 640–1000 mm ±10 mm
Reverse Trendelenburg: 10° ±3°
Trendelenburg: 10° ±3°
Back-rest adjustment: up to 70° ±3°
Leg plate up: 80° ±3°
Leg plate down: 45° ±3°, detachable
Safe working load (SWL): ≥200 kg

Technical Configuration (table)
Stainless-steel handle: 2 pcs
Leg holder (PU material): 2 pcs
Stainless-steel basin: 1 pc
Hand controller: 1 pc
IV pole provision: 2 pcs
Stainless-steel IV pole with 4 plastic hooks (Ø 19 mm): 1 pc
ABS headboard with safe lock: 1 pc
ABS side rail with angle indicator: 1 set
5" double-side central locking castors with side brake pedals on both sides: included

Technical Specifications

• Model: A98-4
• External size (L×W×H): 2050 × 960 × 640 mm ±10 mm
• Height adjustment stroke: 640–1000 mm ±10 mm
• Trendelenburg / Reverse Trendelenburg: 10° ±3°
• Back-rest adjustment: up to 70° ±3°
• Leg plate: up to 80° (up) and 45° ±3° (down), detachable
• Retractable foot section for delivery and gynaecological use
• Safe working load (SWL): ≥200 kg
• Castors: 5" central-controlled double-side locking, TPR tyres
• Included accessories: 2 stainless-steel handles, 2 PU leg holders, 1 stainless-steel basin, 1 hand controller, 2 IV pole provisions, 1 stainless-steel IV pole with 4 plastic hooks (Ø 19 mm)
• Surface and mattress: detachable plastic-steel bed surface and movable high-density memory-foam mattress
