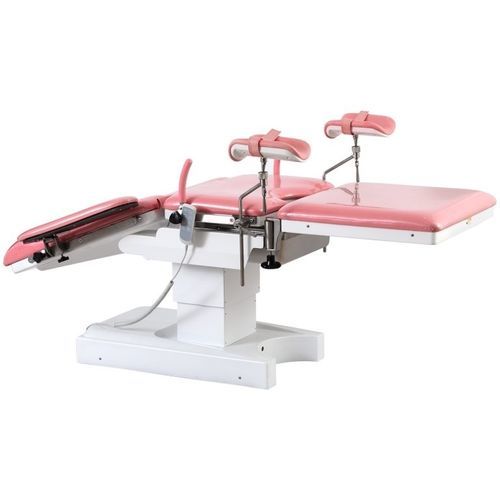

Delivery bed A99-7

electricheight-adjustablereverse Trendelenburg

Overview
A99-7 multi-functional electric obstetric bed from SAIKANG MEDICAL designed for labor, delivery and postpartum care. It features electric height adjustment, articulated back/seat/leg sections, rotating armrests, integrated delivery support accessories and multiple motor brand options. The base uses a seamless steel structure with a durable ABS cover and a one-piece waterproof mattress for easy cleaning in clinical environments.

Key Features

• Electric height adjustment: stroke 630–880 mm
• Back plate: up to 55° (±3°), down 18° (±3°)
• Seat plate: up 35° (±3°) / down 3° (±3°)
• Leg plate outward movement: 0–90° (±3°)
• Armrest outward movement: 0–90° (±3°)
• Reverse Trendelenburg and other positioning functions
• Safe working load ≥ 135 kg
• Connected main and auxiliary bed to support delivery workflow; auxiliary table rotatable and detachable
• Hand controller, handle controller and foot pedal for electric positioning; optional remote control for multiple movements
• Dual-use leg supports suitable for OB/GYN positioning
• Seamless one-piece high-density memory foam mattress with waterproof PU cover for cleaning and disinfection
• Durable ABS base cover and seamless steel base structure for delivery rooms and maternity wards
• Stainless steel waste basin and delivery accessories included
• Motor brand options: Linak, Timotion, Dewert, Jiechang (others on request)

Accessories Included / Typical Configuration

• Arm supports with cushions: 2 pcs
• Hand grips (side rails): 2 pcs
• Leg supports with cushions: 2 pcs
• Anesthesia screen frame: 1 pc
• Stainless steel waste basin: 1 pc
• Hand controller: 1 pc
• Foot controller (pedal switch): 1 pc

Procurement Highlights
Robust base structure, easy-to-clean mattress cover and configurable delivery accessories enable high patient turnover and simple integration with delivery lighting, monitoring and suction equipment for complete maternity project procurement.

Technical specifications

• Dimensions (L × W × H): 1980 × 720 × 630 mm ± 10 mm
• Height adjustment stroke: 630–880 mm ± 10 mm
• Back plate up: 55° ± 3°
• Back plate down: 18° ± 3°
• Seat plate up: 35° ± 3°
• Seat plate down: 3° ± 3°
• Leg plate outwards: 90° ± 3°
• Armrest outwards: 90° ± 3°
• Safe working load: ≥ 135 kg
