Delivery bed A99-5

electricheight-adjustable3-section

Product Overview

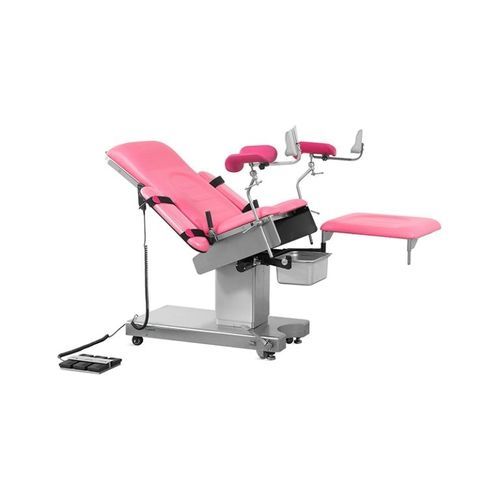

The A99-5 Electric Obstetric Bed is a compact electric obstetric bed designed for labor, delivery and maternity care environments. It features a 304 stainless steel chassis cover with seamless robotic welding, a seamless memory foam mattress, hand and foot controllers for electric positioning, pedal braking for castor control, adjustable arm supports, collapsible side handles, stirrup-style leg supports with straps, and a 90° foldable auxiliary table that can be used as an instrument table or detached when needed.

Key Features

• 304 stainless steel structure with seamless robotic welding for stability, durability and easier cleaning in delivery rooms and OB/GYN areas.
• Seamless high-density memory foam mattress for patient comfort, antibacterial performance and easy cleaning.
• Hand controller and foot pedal control for convenient electric positioning during examinations and delivery preparation.
• Pedal brake system for castor control to move, position and stabilize the bed.
• Adjustable arm supports with straps to support patient comfort and stable arm positioning.
• Collapsible foam-molded side handles to assist patient transfers and provide anti-slip support.
• Leg supports integrated with stirrup function and straps for stabilization during delivery and gynecological procedures.
• 90° foldable auxiliary table (can be folded outwards and detached) for flexible delivery workflows and use as an instrument table.

Procurement Highlights
A compact delivery-room-ready obstetric bed offering essential positioning, patient support and easy routine cleaning. Suitable for maternity wards, delivery rooms and women’s healthcare departments. Can be coordinated with related lighting, monitoring, suction, trolleys and procedure-support equipment for integrated maternity OR planning.

Technical parameters (table)
Size (L × W × H): 1985×665×675 mm ±10 mm
Height Adjustment Stroke: 675-975 mm ±10 mm
Back Plate Up: 55° ±3°
Back Plate Down: 10° ±3°
Seat Plate Up: 20° ±3°
Seat Plate Down: 10° ±3°
Leg board evagination: 90° ±3°
Safe Working Load: ≥135 kg

Technical configuration (table)

• Arm supports with cushions: 2 pcs
• Hand grips (side rails): 2 pcs
• Leg supports with cushions: 2 pcs
• Stainless steel waste basin: 1 pc
• Hand controller: 1 pc
• Foot controller (pedal switch): 1 pc

Use & Application
Designed for labor, delivery and OB/GYN procedures, the A99-5 supports delivery-room workflows with integrated patient positioning, accessory support (leg supports, arm supports, auxiliary table), and features that simplify cleaning and turnover.

Specifications / Technical specifications

• Chassis: 304 stainless steel cover, seamless robotic welding
• Mattress: seamless one-piece high-density memory foam, antibacterial performance
• Controls: hand controller and foot pedal; electric back/seat/height adjustments
• Mobility & stabilization: castor pedal brake system
• Patient supports: adjustable arm supports with straps; collapsible foam-molded side handles
• OB/GYN accessories: stirrup-style leg supports with straps; stainless steel waste basin; 90° foldable auxiliary table
• Dimensions & movement ranges: see Technical parameters above
• Safe working load: ≥135 kg
