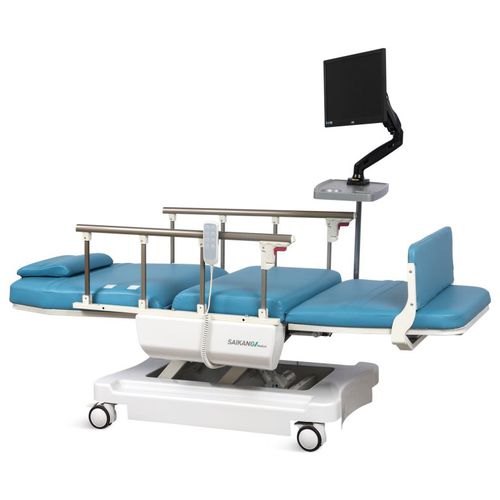

Electric hemodialysis chair SKE-188A

ergonomicheight-adjustablewith adjustable backrest

Overview
The SKE-188A electric dialysis chair is designed for dialysis, infusion and other long-duration treatments. It provides multi-position patient support with motorised adjustments, foldable aluminum siderails and clinical-grade materials suitable for routine sterilization and repeated use.

Key Features

• European 4-section ergonomic layout for clinical comfort and positioning
• Electric adjustments: backrest, knee/leg-rest and height for precise positioning
• Foldable aluminum siderails with safety lock (collapsed type)
• Removable ergonomic pillow
• Four directional casters with brakes for quiet, stable mobility
• Upholstery options: genuine leather or superbe (superbric) finish

Design
Four-section ergonomic design optimised for dialysis and infusion workflows, facilitating patient transfer and caregiver access.

Plastic
Shell components in virgin ABS, sterilizable up to 100°C with tensile strength up to 30 MPa for durable clinical use.

Electric Motor
Linear motors compliant with UL, RoHS and relevant EN standards. Operational noise < 50 dB and rated for approximately 20,000 cycles.

Chair Surface
Available in genuine leather or superbe cover providing a comfortable hand-feel and artisanal finish; upholstery options selectable to clinical preferences.

Siderail
Aluminum-alloy siderails, 4-staff design, collapsed type with safety lock to secure patient and allow caregiver access.

Armrest
Concave R120° armrests designed to prevent arm sliding and improve patient comfort and safety.

Foot Board
Foot board with 150 mm adjustable extension to accommodate patient leg length variability.

Pillow
Ergonomic removable pillow supplied as standard.

Casters & Load Capacity
Four directional casters with brakes ensure quiet, stable movement. Safe load-bearing capacity: 240 kg.

Accessories / Standard Configuration

• Hand controller: 1 pc
• Power cord: 1 pc
• Foldable aluminum guardrail: 1 set
• Silent casters: 4 pcs
• Pillow: 1 pc

Technical parameters (table)
Overall size (L x W): 2040 x 700 mm (±10 mm)
Back: 820 x 700 mm (±10 mm)
Seat: 470 x 700 mm (±10 mm)
Leg: 660 x 700 mm (±10 mm)
Foot board: 680 x 500 mm (±10 mm)
Pillow: 360 x 230 mm (±10 mm)
Mattress thickness: 80 mm (±10 mm)

Technical configuration (table)
Back-rest adjustment: 0° – 70° (±5°)
Knee-rest adjustment: -40° – 0° (±5°)
Height adjustment: 580 – 670 mm (±10 mm)
Foot board adjustable distance: 150 mm (±10 mm)

Notes
Materials, motor options and upholstery colours can be selected to meet specific clinical requirements and preferences.

Technical specifications

• Model: SKE-188A
• Brand: SAIKANG MEDICAL
• Total dimensions (L x W): 2040 x 700 mm (±10 mm)
• Backrest adjustment: 0°–70° (±5°)
• Knee/leg-rest adjustment: -40°–0° (±5°)
• Height adjustment: 580–670 mm (±10 mm)
• Plastic material: Virgin ABS, sterilizable at 100°C, tensile strength up to 30 MPa
• Surface: Genuine leather or superbe cover options
• Siderails: Aluminum alloy, foldable with safety lock
• Motor: Linear motor (UL / RoHS / EN), noise <50 dB, ~20,000 cycles life
• Castors: Four directional casters with brakes; safe load bearing 240 kg
• Mattress thickness: 80 mm (±10 mm)
• Pillow size: 360 x 230 mm (±10 mm)
• Included accessories: hand controller (1 pc), power cord (1 pc), foldable guardrail (1 set), 4 silent casters, pillow (1 pc)
