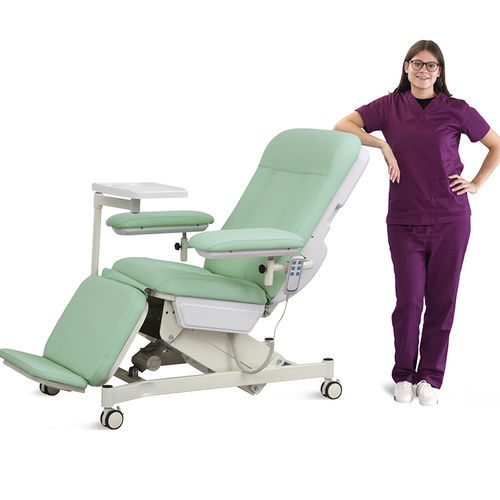

Electric dialysis chair SKE-133

on castersergonomicTrendelenburg

Overview
SKE-133 electric three-function dialysis chair with electric backrest, knee-rest and height adjustment. Features CPR emergency function, 180° swing-out armrests, 80 mm mattress and ergonomic patient positioning. Intended for dialysis centers, renal care units, infusion therapy and chemotherapy applications.

Main features

• Electric backrest, knee-rest and height adjustment (three-function)
• CPR emergency function for rapid patient recline
• 180° swing-out armrests to facilitate patient transfer
• Ergonomic positioning optimized for dialysis and infusion procedures
• 80 mm padded mattress for patient comfort

Quality & manufacturing

• Frame steel: Baosteel raw materials
• Plastic parts: multi-step epoxy coating, ASTM antibacterial testing, paint thickness ~0.12 mm, brightness 60°, impact resistance up to 50 kg
• Welding: Panasonic robotic 360° welding for smooth, consistent welds
• Electric motor: linear motor compliant with UL/ROHS/EN standards, noise <50 dB, rated ~20,000 cycles
• Production: robotic welding, automatic epoxy coating, efficient assembly line and strict quality control
• Certifications: ISO 9001, ISO 13485, ISO 14001, ISO 18001, CE, FDA, Russian registration, Brazil ANVISA; complies with 93/42/EEC and IEC 60601
• Multiple registered patents

Technical parameters (table)
Overall size (L x W): 2000 x 580 mm (±10 mm)
Back: 770 x 580 mm (±10 mm)
Seat: 470 x 580 mm (±10 mm)
Leg: 400 x 540 mm (±10 mm)
Foot board: 430 x 210 mm (±10 mm)
Mattress thickness: 80 mm (±10 mm)
Back-rest adjustment: -8° to 70° (±5°)
Knee-rest adjustment: -60° to 0° (±5°)
Height adjustment range: 550 - 700 mm (±10 mm)
CPR: emergency function provided
Armrests swing range: 0° - 180°

Technical configuration

• Hand controller: 1 pc
• Power cable: 1 pc
• 3-inch brake wheels: 4 pcs
• Arm supports: 2 pcs
• Small dining/tray table: 1 pc

Additional information

• Warranty: standard 1-year warranty; spare parts policy per manufacturer
• Standard delivery time: 28 days (manufacturer indication)
• Payment terms supported: L/C, T/T, D/P and credit subject to verification
• OEM / customization: supported (R&D team available)
• Available motor brands/options: Linak, Timotion, Dewert, Jiechang
• Color customization: headboard/footboard/ABS side rails customizable for bulk orders

Specifications

• Model: SKE-133
• Dimensions (L x W): 2000 x 580 mm (±10 mm)
• Back dimension: 770 x 580 mm (±10 mm)
• Seat dimension: 470 x 580 mm (±10 mm)
• Leg dimension: 400 x 540 mm (±10 mm)
• Foot board: 430 x 210 mm (±10 mm)
• Mattress thickness: 80 mm (±10 mm)
• Back-rest adjustment: -8° to 70° (±5°)
• Knee-rest adjustment: -60° to 0° (±5°)
• Height adjustment: 550 - 700 mm (±10 mm)
• Armrest swing: 0° - 180°
• CPR emergency function: included
• Hand controller: 1 pc
• Brake wheels: 4 pcs (3-inch)
• Arm supports: 2 pcs
• Tray table: 1 pc
• Electric motor: linear motor, UL/ROHS/EN compliant, noise <50 dB, ~20,000 cycles
• Materials & processes: Baosteel, epoxy coating, robotic welding
• Certifications: ISO series, CE, FDA, Russian registration, ANVISA, 93/42/EEC, IEC 60601
