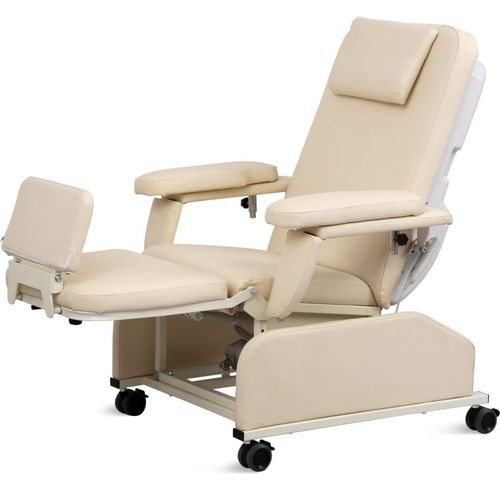

Chemotherapy hemodialysis chair SKE-135

electricergonomicwith adjustable backrest

Overview The SKE-135 electric two-function dialysis chair offers electric backrest and legrest adjustment, 180° swing-out armrests and ergonomic patient positioning with a 60 mm mattress. Designed for dialysis centres, infusion clinics, chemotherapy departments and other long-duration treatment settings.

Features

• Electric backrest and knee-rest adjustment (two-function)
• 180° swing-out armrests
• Ergonomic patient positioning with 60 mm mattress
• Linear electric motor (UL/ROHS/EN standards), noise under 50 dB, rated for approximately 20,000 movements
• Robot welding, automatic epoxy coating and automated assembly line for consistent build quality

Applications

• Dialysis centres
• Infusion clinics
• Chemotherapy departments
• Long-duration treatment applications

Quality control & materials

• Steel: Baosteel (Fortune Global 500 supplier)
• Plastic: 11-stage epoxy coating, ASTM-tested antibacterial finish, paint thickness approx. 0.12 mm, high impact resistance
• Welding: Panasonic robotic welding for 360° seamless welds
• Electric motor options: Linak, Timotion, Dewert, Jiechang (multiple brands available to match functional and budgetary requirements)

Accessories

• Hand controller: 1 pc
• Power cord: 1 pc
• 3-inch silent caster: 1 set

Technical specifications

• Size: 1800×550 mm
• Back: 780×590 mm
• Seat: 480×550 mm
• Leg: (460–580)×420 mm
• Seat height: 550 mm
• Pillow: 370×230 mm
• Armrest: 500×160 mm
• Mattress thickness: 60 mm
• Backrest angle: -10° to 70°
• Leg-rest angle: -70° to 0°
• Armrest swing: 0° to 270°
• Voltage and frequency: 100–240 V · 50/60 Hz
• Plug: hospital grade (as required)
