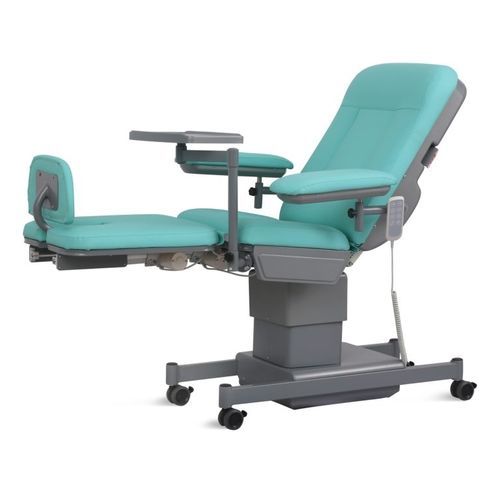

Chemotherapy hemodialysis chair SKE-134

electricheight-adjustablewith adjustable backrest

Overview SKE-134 electric three-function dialysis chair from SAIKANG MEDICAL features electric backrest, leg/knee rest and height adjustment, integrated CPR function, swing-out armrests and ergonomically designed seat and mattress. It is intended for dialysis centers, infusion therapy, chemotherapy suites and other long-duration clinical treatments.

Key features

• Three electric functions: backrest, leg/knee-rest and overall height adjustment
• Integrated CPR (rapid recline) for emergency repositioning
• Swing-out armrests (0°–180°) to facilitate patient access and transfer
• Ergonomic seat and mattress designed for prolonged patient comfort
• Multiple actuator brand options (Linak, Timotion, Dewert, Jiechang) to match clinical preferences and budgets

Applications

• Dialysis centers
• Infusion and transfusion therapy
• Chemotherapy units
• Long-term treatment areas and outpatient clinics

Technical parameters (table)Size (L×W): 1930 × 580 mm (±10 mm)
Back: 780 × 580 mm (±10 mm)
Seat: 480 × 580 mm (±10 mm)
Leg: 580 × 530 mm (±10 mm)
Foot board: 240 × 380 mm (±10 mm)
Mattress thickness: 80 mm (±10 mm)
Back-rest adjustment: -8° – 70° (±5°)
Knee-rest adjustment: -50° – 0° (±5°)
Height adjustment: 550 – 700 mm (±10 mm)
Foot board adjustable distance: 150 mm (±10 mm)
With CPR: CPR function included
Armrests swing out: 0° – 180°


Technical configuration

• Hand controller: 1 pc
• Power cord: 1 pc
• 3-inch brake wheels: 4 pcs
• Arm supports: 2 pcs
• Small dining/table tray: 1 pc

Quality control & materials

• Structural steel: Baosteel-grade materials specified for frame components
• Surface finish: multi-stage epoxy coating (11-step), antibacterial finish tested to relevant standards; typical paint thickness ~0.12 mm
• Welding: robotic welding (Panasonic robots) for consistent 360° weld quality
• Actuators: linear electric actuators compliant with UL/ROHS/EN standards; noise <50 dB; long-life rating (~20,000 cycles)
• Manufacturing: automated welding, coating and assembly with defined quality checkpoints

Accessories & options

• Upholstery: ultrafiber leather with multiple color options (visual samples may vary)
• Optional motor/actuator brands: Linak, Timotion, Dewert, Jiechang
• Standard supplied accessories: hand controller, power cable, four brake wheels, arm supports, small dining/table tray

Technical specifications

• Model: SKE-134
• Size (L×W): 1930 × 580 mm (±10 mm)
• Back dimension: 780 × 580 mm (±10 mm)
• Seat dimension: 480 × 580 mm (±10 mm)
• Leg dimension: 580 × 530 mm (±10 mm)
• Foot board: 240 × 380 mm (±10 mm)
• Mattress thickness: 80 mm (±10 mm)
• Back-rest adjustment range: -8° to 70° (±5°)
• Knee-rest adjustment range: -50° to 0° (±5°)
• Height adjustment range: 550 – 700 mm (±10 mm)
• Foot board adjustable distance: 150 mm (±10 mm)
• CPR: included
• Armrests swing-out range: 0° – 180°
• Hand controller: 1 pc
• Brake wheels: 3-inch × 4 pcs
• Arm supports: 2 pcs
• Small dining/table tray: 1 pc
