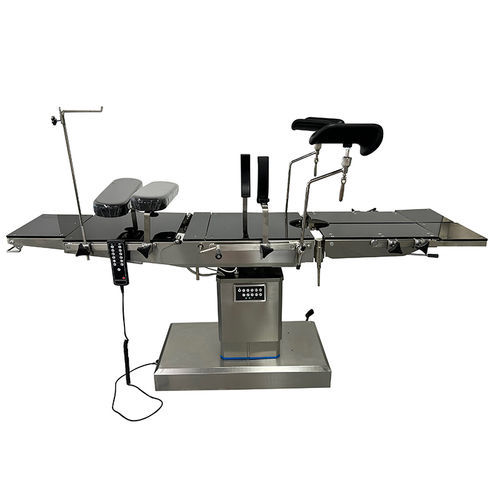

Universal operating table SXD8801-A

electricradiolucenttilting

Product brief
High 304 stainless steel dual-controls electric operating table designed for universal surgical applications with C-arm compatibility. Table size: 2100×500×750 mm (nominal) — MOQ: 1 PC

Features

• 1. X‑ray C-arm compatible design for intraoperative imaging across multiple surgical specialties.
• 2. Radiolucent tabletop manufactured from imported acrylic for optimal imaging clarity.
• 3. Mobile castors with central brake to combine mobility and stable positioning.
• 4. One-key reset and one-key stop functions for simplified, rapid control.
• 5. Memory sponge mattress designed for easy cleaning and disinfection.
• 6. International standard side rails compatible with a wide range of surgical accessories.
• 7. Built-in emergency battery backup to maintain table functions during power outages.

Technical parameters
Table size — 2100（±20）×500（±20）mm
Table height — 750(±20) - 1050(±20) mm
Lateral tilt — ≥20° electrical motion
Trendelenburg & reverse trendelenburg — ≥25° electrical motion
One Key Reset — Yes
Battery system — At least 2-4 hours
One Key Stop — Yes
Back plate up/down folding — ≥80°/30°
Head plate adjustment — ≥30°–90°
Kidney bridge adjustment — ≥100 mm
Electric horizontal sliding — ≥300 mm
Leg plate (up/down/outwards) — ≥15°/90°/90°

Configuration

• Table body — Qty: 1 — Unit: set
• Mattress — Qty: 1 — Unit: set
• Motor — Qty: 6 — Unit: sets
• Anesthetic screen — Qty: 1 — Unit: set
• Hand support — Qty: 2 — Unit: pcs
• Leg support — Qty: 2 — Unit: pcs
• Kidney bridge — Qty: 2 — Unit: pcs
• Hand remoter — Qty: 1 — Unit: pc
• Board control — Qty: 1 — Unit: set
• Power supply cable — Qty: 1 — Unit: pc
• Battery system — Qty: 2 — Unit: pcs
• Operation manual — Qty: 1 — Unit: set

Product specifics

• Model: SXD8801-A
• Brand: SUXIN MEDICAL
• Code: 940290

Technical specifications

• Material: High 304 stainless steel construction.
• Radiolucent acrylic tabletop suitable for C-arm imaging.
• Electrical adjustments: height, lateral tilt, Trendelenburg/reverse Trendelenburg, back plate, head plate, leg plate, horizontal sliding.
• Emergency built-in battery backup (2–4 hours typical) for power failure situations.
• Central brake castors for mobility and stability.
• Memory sponge mattress for cleaning and disinfection.
• Compatibility with international standard side rails and multiple surgical accessories.
• Controls: dual controls with one-key reset and one-key stop functionality.
