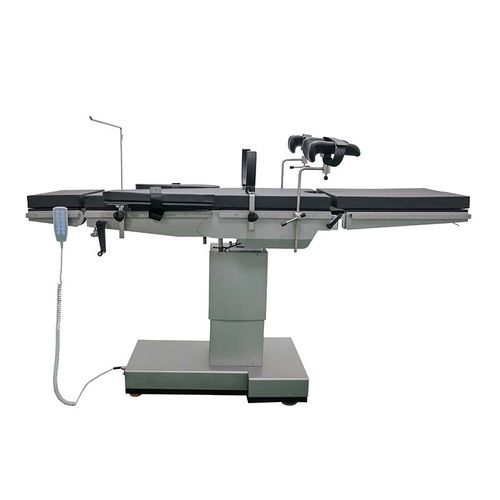

Universal operating table SXD8801-A
gynecologicalorthopedicophthalmic

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic - image - 2

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic - image - 3

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic - image - 4

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic - image - 5

Universal operating table - SXD8801-A - Jiangsu Suxin Medical Equipment - gynecological / orthopedic / ophthalmic - image - 6

Add to favorites

Compare this product

Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Applications

universal, gynecological, orthopedic, ophthalmic, ENT, urology, neurosurgery, cardiology, radiology, endoscopy, laparoscopy, dermatology

Operation

electric

Features

adjustable height, tilting, mobile, radiolucent, reclining

Components

with legrest, with armrest, with headrest

Number of sections

5-section

Power source

220V / 50Hz, 110V / 60Hz, 230V / 50Hz

Material

stainless steel

Total length

210 cm
(82.7 in)

Total width

500 mm
(19.7 in)

Min.: 480 mm
(18.9 in)

Max.: 520 mm
(20.5 in)

Max supported weight

250 kg
(551.2 lb)

Description

Product brief
Dual‑controls electric operating table manufactured in high‑grade 304 stainless steel, suitable for universal surgical applications and intraoperative C‑arm imaging. Tabletop: imported radiolucent acrylic plate. Table size: 2100×500×750 mm (nominal). MOQ: 1 PC.

Unique features

C‑arm compatible tabletop for fluoroscopic and imaging procedures.
Radiolucent acrylic tabletop ensuring clear intraoperative images.
Mobile castors with central brake for secure positioning.
One‑key reset and one‑key stop for simplified operation by clinical staff.
Memory foam mattress, removable and easy to disinfect.
International standard side rails compatible with a range of surgical accessories.
Built‑in emergency power supply (battery backup) to maintain functionality during power failure.

Technical parameters

Table size: 2100 (±20) × 500 (±20) mm
Table height: 750 (±20) – 1050 (±20) mm
Lateral tilt: ≥20° (electric)
Trendelenburg / reverse Trendelenburg: ≥25° (electric)
One key reset: Yes
Battery backup: 2–4 hours
One key stop: Yes
Back plate folding: ≥80° / 30°
Head plate adjustment: ≥30°–90°
Kidney bridge travel: ≥100 mm
Electric horizontal sliding: ≥300 mm
Leg plate angles: ≥15° / 90° / 90°

Configuration

Table body — Qty: 1 — Unit: set
Mattress — Qty: 1 — Unit: set
Motor — Qty: 6 — Unit: set
Anesthetic screen — Qty: 1 — Unit: set
Hand support — Qty: 2 — Unit: pcs
Leg support — Qty: 2 — Unit: pcs
Kidney bridge — Qty: 2 — Unit: pcs
Hand remote — Qty: 1 — Unit: pc
Board control — Qty: 1 — Unit: set
Power supply cable — Qty: 1 — Unit: pc
Battery system — Qty: 2 — Unit: pcs
Operation manual — Qty: 1 — Unit: set

Characteristics / specifications

Model: SXD8801-A
Brand: SUXIN MEDICAL
Code: 940290
Table size: 2100 (±20) × 500 (±20) mm
Table height: 750 (±20) – 1050 (±20) mm
Lateral tilt: ≥20° (electric)
Trendelenburg / reverse Trendelenburg: ≥25° (electric)
Battery backup: at least 2–4 hours
Back plate folding: ≥80° / 30°
Head plate adjustment: ≥30°–90°
Kidney bridge travel: ≥100 mm
Electric horizontal sliding: ≥300 mm
Leg plate angles: ≥15° / 90° / 90°
