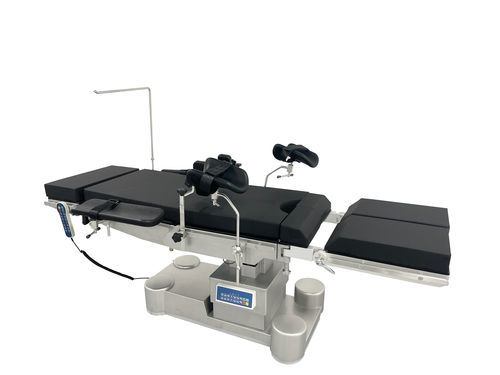

Gynecological operating table SXD8804-B
universalorthopedicophthalmic

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 2

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 3

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 4

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 5

Gynecological operating table - SXD8804-B - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 6

Add to favorites

Compare this product

Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Applications: gynecological, universal, orthopedic, ophthalmic, endoscopy, ENT, urology, neurosurgery, cardiology, radiology, laparoscopy, dermatology
Operation: electric, hydraulic
Features: adjustable height, tilting, mobile, radiolucent
Components: with legrest, with armrest, with headrest
Number of sections: 5-section
Power source: 220V / 50Hz, 110V / 60Hz
Material: stainless steel
Total length: 210 cm
(82.7 in)
Total width: 55 cm
(21.7 in)
Max supported weight: 450 kg
(992.1 lb)

Description

Overview:

Multi-functional electro-hydraulic operating table for orthopedics, gynecology, ophthalmology, ENT, urology and other surgical specialties.
Main structure manufactured in SUS304 stainless steel for durability and easy cleaning.
Designed for imaging compatibility with C-arm thanks to ultra-low position and extended translation.

Key features:

Electric control for lift, rise/fall, forward/backward tilt, left/right tilt, back up and lengthwise translation for smooth, precise positioning.
Low lift design with lifting stroke up to 450 mm to provide sufficient space for intraoperative imaging.
Lengthwise translation ≥300 mm to eliminate blind zones during imaging.
Built-in emergency power supply to maintain table functions in case of power failure.
Electric brake lock for safe transport and fixation; easy to move and clean.
Built-in waist/kidney bridge with lifting ≥120 mm for lumbar and spinal procedures.
One-key anti-buckling and one-button automatic level return to support rapid emergency response.
Independent manual controller and column panel controller for redundant, reliable control.
Memory sponge mattress for infection control and patient comfort; double-joint head plate for versatile head positioning.
International standard side rails compatible with a range of surgical accessories.

Technical specifications:

Model: SXD8804-B
Material: SUS304 stainless steel (main structure)
Table functions: electric lift, rise/fall, forward/backward tilt, left/right tilt, back up, lengthwise translation
Lifting stroke: up to 450 mm
Lengthwise translation: ≥300 mm (no blind area)
Built-in emergency power supply
Waist/kidney bridge lift: ≥120 mm
One-key anti-buckling; one-button automatic level return
Mattress: memory sponge, easy to clean and disinfect
Control systems: independent manual controller and column panel controller
Side rails: international standard
Pillow/head plate: double joint
Trendelenburg angle: ≥25°
Lateral tilt: left ≥20°, right ≥20°
Back section: upward ≥75°, downward ≥40°
Headboard: upward ≥40°, downward ≥80°, lifting ≥100 mm
Legboard: upward ≥15°, downward ≥90°, outward ≥90°
Table top dimensions: Length ≥2100 mm, Width ≤550 mm (without rails)
Lowest height: ≤550 mm
Translating: ≥300 mm
Lifting: ≥450 mm
Load (as indicated): ≥450 mm

Positioning and imaging:

Supports multiple surgical positions (headboard, back, legboard configurations, lateral tilt, Trendelenburg) with illustrations available for configuration guidance.
Design minimizes imaging blind spots and facilitates C-arm access during procedures.

Applications:

Suitable for orthopedics, neurosurgery, gynecology, urology, ENT, ophthalmology and general surgery where versatile positioning and imaging access are required.
