Gynecological operating table SXD8804-B-I
universalorthopedicophthalmic

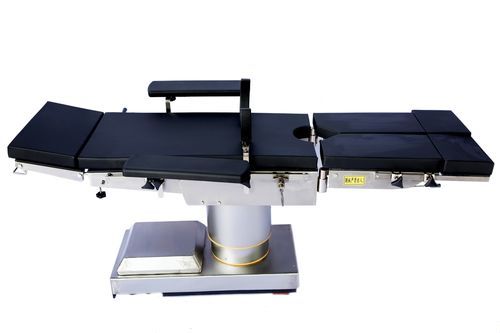

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 2

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 3

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 4

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 5

Gynecological operating table - SXD8804-B-I - Jiangsu Suxin Medical Equipment - universal / orthopedic / ophthalmic - image - 6

Add to favorites

Compare this product

Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Applications: gynecological, universal, orthopedic, ophthalmic, ENT, urology, neurosurgery, cardiology, radiology, laparoscopy, endoscopy, dermatology
Operation: electric, hydraulic
Features: adjustable height, tilting, mobile, radiolucent, reclining
Components: with legrest, with armrest
Number of sections: 5-section
Power source: 220V / 50Hz, 110V / 60Hz, 230V / 50Hz
Material: stainless steel
Total length: 210 cm
(82.7 in)
Total width: 50 cm
(19.7 in)
Max supported weight: 250 kg
(551.2 lb)

Description

Product introduction
SXD8804-B is developed independently by the manufacturer using advanced control and drive technology. This electro-hydraulic operating table is designed for a wide range of surgical procedures and features a radiolucent table top compatible with C-ARM imaging.

Unique features

Vertically movable tabletop made of radiolucent, high-intensity composite panel suitable for intraoperative C-ARM imaging; electro-hydraulic braking system for secure positioning.
Rounded cover and base in stainless steel — water- and dust-resistant finish for clinical environments; electro-hydraulic drive engineered for low noise and reliable operation.
Optional built-in emergency power supply allowing automatic charging and operation in case of mains failure.
Electric-hydraulic servo controls for lift, Trendelenburg/reverse Trendelenburg, lateral tilt and backplate elevation; imported magnetic valves and hydraulic pump ensure precise motion. Horizontal sliding and braking are controlled electrically.

Technical parameters
Table size : 2040 (±20) × 500 (±20) mm
Table height : 700(±20)—1050(±20) mm
Lateral tilt : ≥25° electrical motion
Trendelenburg & reverse trendelenburg : ≥25° electrical motion
Back plate up folding : ≥75°
Back plate down folding : ≥30°
Head plate adjustment : ≥90°
Kidney bridge adjustment : ≥120 mm
Electric horizontal sliding : ≥340 mm
Leg plate outwards : ≥90°

Configuration
No - Accessories name - Qty - Unit
1 - Table body - 1 - set
2 - Mattress - 1 - set
3 - Motor - 6 - sets
4 - Anesthetic screen - 1 - set
5 - Hand support - 2 - pcs
6 - Leg support - 2 - pcs
7 - Kidney bridge - 2 - pcs
8 - Hand remoter - 1 - pc
9 - Slippage system - 1 - set
10 - Slippage system - 1 - pc
11 - Guarantee/warranty card - 1 - set
12 - Operation manual - 1 - set

Model
Listed model in product specifics: SXD8805 (product commercial name: SXD8804-B-I)

Technical specifications

Table size: 2040 (±20) × 500 (±20) mm
Adjustable table height: 700(±20)—1050(±20) mm
Lateral tilt: ≥25° (electrical)
Trendelenburg & reverse Trendelenburg: ≥25° (electrical)
Back plate up folding: ≥75°; down folding: ≥30°
Head plate adjustment: ≥90°
Kidney bridge adjustment: ≥120 mm
Electric horizontal sliding: ≥340 mm
Leg plate outwards: ≥90°
Top material: radiolucent high-intensity composite panel compatible with C-ARM X-ray
Body & base: stainless steel (waterproof, dust proof)
Drive: electro-hydraulic servo with imported magnetic valve and oil pump system
Optional built-in emergency power supply for automatic charging and operation during power outage
