Gynecological operating table SXD8801
orthopedicophthalmicENT

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT - image - 2

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT - image - 3

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT - image - 4

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT - image - 5

Gynecological operating table - SXD8801 - Jiangsu Suxin Medical Equipment - orthopedic / ophthalmic / ENT - image - 6

Add to favorites

Compare this product

Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Applications

gynecological, orthopedic, ophthalmic, ENT, urology, radiology

Operation

electric

Features

adjustable height, tilting, mobile, radiolucent

Components

with legrest, with headrest, with sliding tabletop

Number of sections

5-section

Material

stainless steel

Total length

Min.: 208 cm
(81.9 in)

Max.: 212 cm
(83.5 in)

Total width

Min.: 48 cm
(18.9 in)

Max.: 52 cm
(20.5 in)

Description

Product Introduction

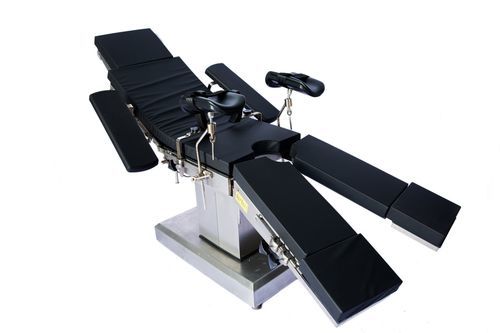

SXD8801 is an electrically operated surgical table designed for procedures on the head, neck, thorax, abdomen, perineum and limbs, and suitable for obstetrics, ophthalmology, otolaryngology, orthopedics and general surgery. The radiolucent tabletop enables intraoperative C‑ARM X‑ray imaging. The five‑section top includes head, back, seat and two detachable leg plates.

Unique features

Antistatic, X‑ray compatible tabletop made of radiolucent materials for optimal fluoroscopy.
Detachable leg plates with air‑spring and gravity compensation for easy folding and manual outward rotation for urology procedures.
Electric horizontal sliding ≥ 400 mm to expand the X‑ray working area.
Hand‑held control for precise linear and circular motions; waterproof cap design protects against fluids, debris and static.
Acrylic tabletop and polyurethane mattress: corrosion‑resistant, durable, antibacterial and antistatic.
Stainless steel structure for easy cleaning and infection control.
Movable or fixed base with mute casters and front brake system for stable positioning.
Supports five motions: height adjustment, Trendelenburg/reverse Trendelenburg, lateral tilt and horizontal sliding.
Electronic control unit with power supply and button box; optional rechargeable battery for backup (approx. 20 surgeries) and AC power operation.
Compliant with ISO9001, ISO13485 and CE standards.

Technical parameters

Table size: 2100 (±20) × 500 (±20) mm
Height range: 750 (±20) – 1000 (±20) mm
Lateral tilt: ≥ 20° (electrical)
Trendelenburg / reverse Trendelenburg: ≥ 25° (electrical)
Back plate up folding: ≥ 70°
Head plate adjustment: 30° – 90°
Kidney bridge adjustment: ≥ 120 mm
Electric horizontal sliding: ≥ 400 mm
Leg plate folding: ≥ 90°

Configuration (Accessories)

1 | Table body | 1 set
2 | Mattress | 1 set
3 | Motor | 6 sets
4 | Anesthetic screen | 1 set
5 | Hand support | 2 pcs
6 | Leg support | 2 pcs
7 | Kidney bridge | 2 pcs
8 | Hand remoter | 1 pc
9 | Slippage system | 1 set
10 | Power supply cable | 1 pc
11 | Operation manual | 1 set

Specifications

Model: SXD8801
Radiolucent tabletop suitable for C‑ARM X‑ray fluoroscopy
Five‑section tabletop: head, back, seat and two detachable leg plates
Horizontal electric sliding ≥ 400 mm
Table size: 2100 × 500 mm (± tolerances)
Height adjustment range: 750 - 1000 mm (± tolerances)
Lateral tilt ≥ 20°; Trendelenburg/reverse ≥ 25° (electrical)
Back plate up folding ≥ 70°; head plate adjustable 30°–90°
Kidney bridge adjustable ≥ 120 mm
Constructed with stainless steel base, acrylic tabletop and polyurethane mattress
Hand‑held control box; optional rechargeable battery for backup (approx. 20 surgeries)
Front brake system and movable base with mute casters
Standards: ISO9001, ISO13485, CE
