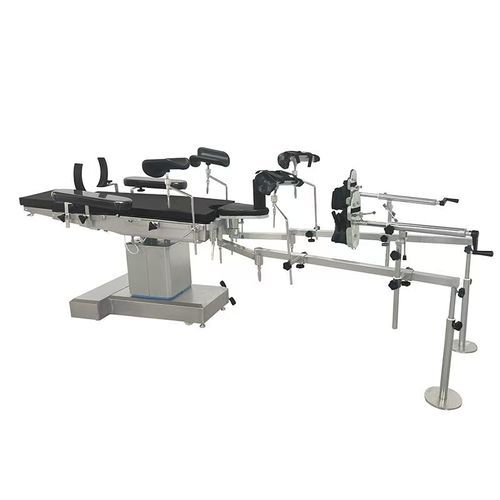

Orthopedic operating table SXD8804-A

universalgynecologicalendoscopy

Product brief
Electric operating table manufactured in high‑grade 304 stainless steel with radiolucent acrylic tabletop and optional hanging traction frame. Table size: 2100×500×750 mm. MOQ: 1 PC.

Overview
Modular electric operating table designed for a wide range of surgical specialties. Compatible with C‑arm imaging to support intraoperative radiography and fluoroscopy.

Key features

• X‑ray C‑arm compatible design with radiolucent acrylic tabletop for unobstructed imaging.
• 304 stainless steel construction for clinical environments.
• T‑base on swivel castors for stable positioning and mobility.
• Interface for connection to hanging traction frame set for orthopedic procedures.
• Memory foam mattress with removable cover for cleaning and disinfection.
• International standard side rails for mounting surgical accessories and instrument supports.
• Built‑in emergency battery backup to maintain table functions during power loss.

Technical parameters

• Model: SXD8804-A
• Table size: 2100（±20）×500（±20）mm
• Table height range: 750（±20）–1050（±20）mm
• Lateral tilt: ≥20° (electrical)
• Trendelenburg / reverse Trendelenburg: ≥25° (electrical)
• Battery backup: at least 2–4 hours
• Back plate folding: ≥80°/30°
• Head plate adjustment: 30°–90°
• Kidney bridge travel: ≥120 mm
• Electric horizontal sliding: ≥300 mm
• Leg plate angles: ≥15° (up) / 90° (down) / 90° (outwards)

Configuration

• No.1 – Table body – Qty: 1 set
• No.2 – Mattress – Qty: 1 set
• No.3 – Motor – Qty: 6 sets
• No.4 – Anesthetic screen – Qty: 1 set
• No.5 – Hand support – Qty: 2 pcs
• No.6 – Leg support – Qty: 2 pcs
• No.7 – Kidney bridge – Qty: 2 pcs
• No.10 – Hand remoter – Qty: 1 pc
• No.11 – Battery system – Qty: 2 pcs
• No.12 – Operation manual – Qty: 1 set

Specifications

• Brand: SUXIN MEDICAL
• HS code: 940290
• Battery system: rechargeable, supports emergency operation
• Casters: swivel with locking mechanism
