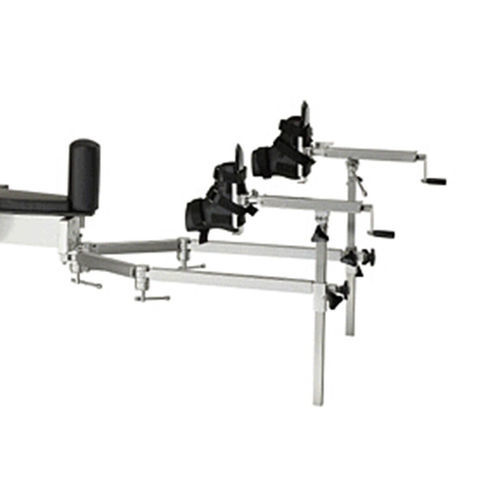

Spine surgery orthopedic extension device SX-02

knee surgeryhip surgery

Product introduction:
The SX-02 suspended traction frame by Suxin is designed for orthopaedic limb procedures. It permits controlled lateral traction and internal/external abduction of the patient’s limb during surgery and is compatible with a range of operating tables.

Key features:
Stainless steel surfaces, corrosion-resistant and easy to disinfect; adjustable traction mechanism with precise stroke control; modular accessories for different surgical configurations; designed for stable and repeatable positioning.

Technical parameters:
Traction frame length: 1500 mm
Traction frame width: 450 mm
Traction frame height: 1000 mm
Traction stroke: 0-130 mm
Traction range: 0-180°

Configuration:
No — Accessories name — QTY
1 — Extended rod and floor disk — 2 pcs
2 — Seat plate and seat mattress — 1 set
3 — Extended rod (right & left) — 2 pcs
4 — Leg support — 2 pcs
5 — Traction adjustable construction — 2 pcs
6 — Perineal column sleeve — 1 pc
7 — Extended rod locked handle — 2 pcs
8 — Traction frame leather shoes — 1 set
9 — Guarantee/warranty card — 1 set
10 — Operation manual — 1 set

Specifications:

• Model: SX-02
• Brand: Suxin
• Code: 9402900000
• Material / Surface: Stainless steel; corrosion-resistant; easy to disinfect and clean; rust-free
• Dimensions (L×W×H): 1500 mm × 450 mm × 1000 mm
• Traction stroke: 0-130 mm
• Traction range: 0-180°
• Included accessories: Extended rod and floor disk (2 pcs); Seat plate and seat mattress (1 set); Extended rod (right & left) (2 pcs); Leg support (2 pcs); Traction adjustable construction (2 pcs); Perineal column sleeve (1 pc); Extended rod locked handle (2 pcs); Traction frame leather shoes (1 set); Guarantee/warranty card (1 set); Operation manual (1 set)
