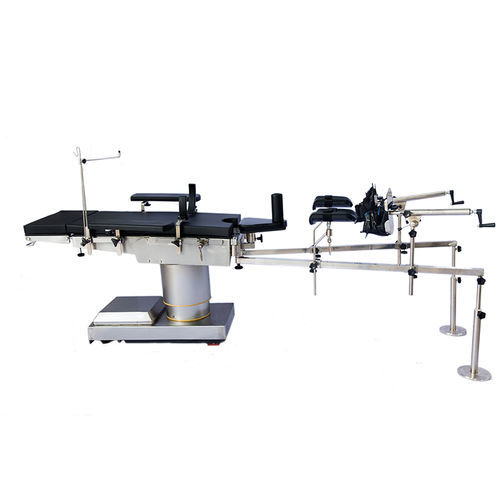

Lumbar and cervical traction table SXD8804-B

Product brief
Electric hydraulic operating table in 304 stainless steel with hanging traction frame for orthopedic and general surgery. Table size: 2100×500×750 mm. MOQ: 1 PC

Product Description

• Suitable for a wide range of surgical procedures including orthopedic operations.
• C-arm compatible tabletop made of radiolucent imported acrylic for clear imaging.
• Can be connected to a hanging traction frame set for traction procedures.
• Memory foam mattress for patient comfort; easy to clean and disinfect.
• Equipped with international standard side rails to attach various surgical accessories.
• Built-in emergency power supply ensures operation during power failure.

Technical parameters

• Model: SXD8804-B
• Brand: SUXIN MEDICAL
• Product code: 940290
• Table dimensions: 2100（±20）×500（±20） mm
• Adjustable table height: 750（±20） - 1050（±20） mm
• Lateral tilt: ≥20° (electrical)
• Trendelenburg / reverse Trendelenburg: ≥25° (electrical)
• Battery backup: 2-4 hours
• Back plate folding range: ≥80° / 30°
• Head plate adjustment: 30°-90°
• Kidney bridge travel: ≥100 mm
• Electric horizontal sliding: ≥300 mm
• Leg plate adjustment (up/down/outwards): ≥15° / 90° / 90°

Configuration

• Table body: 1 set
• Mattress: 1 set
• Motor: 6 sets
• Anesthetic screen: 1 set
• Hand support: 2 pcs
• Leg support: 2 pcs
• Kidney bridge: 2 pcs
• Hand remote: 1 pc
• Battery system: 2 pcs
• Operation manual: 1 set
