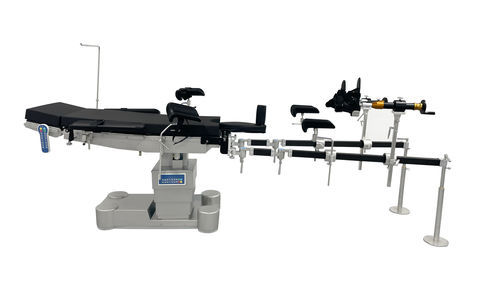

Universal operating table SXD8804-B

gynecologicalophthalmicENT

Product description
SXD8804 multi-purpose electric hydraulic operating table designed for medical institutions to support a wide range of surgical procedures, with particular suitability for obstetrics and gynecology as well as ophthalmic and neurosurgery requiring ultra-low positions. The table uses electric control components for stable, reliable transmission and self-locking mechanisms to secure adjusted positions. The main frame combines high-strength carbon steel with large components in 0Cr18Ni9 stainless steel. The mattress features a PU outer cover, inner sponge and memory foam; bed board materials are aseptically treated, fire-resistant and antistatic for easy disinfection and cleaning.

Features

• Designed for ophthalmic and neurosurgery with ultra-low position capability; supports seated surgical approaches.
• Five-section tabletop: head, back, hip, leg and foot plates; head and leg sections interchangeable to accommodate diverse surgical positions.
• Radiolucent tabletop with cassette guide under table for imaging; eccentric column design maximizes X‑ray access.
• Back and hip composite bending control on the tabletop for procedures such as cholecystectomy and nephrectomy.
• Equipped with casters for easy movement and positioning.
• Two independent hydraulic drive systems with backup activation to maintain operation in case of malfunction.
• Operable from mains power or by rechargeable battery; 6–8 hours charging supports multiple procedures (see battery spec below).
• Edge rails, base and columns in high-quality stainless steel for corrosion resistance and easy cleaning.
• Optional skull frame with X‑ray transmissive configuration for neurosurgery.
• T-shaped base for high stability, good mobility and increased surgeon foot space.

Table (key parameters)
Type and model: Theatre OT Table Electric Hydraulic Surgical Bed With One Key Reset Electric Hydraulic Orthopedic Operating Table With Traction Frame
Material: 304 stainless steel
Table size: 2100*550 mm
Table height: 650-1100 mm
Back plate up folding: ≥85°
Back plate down folding: ≥30°
Head plate (up/down): ≥30°-90°
Leg plate (up/down): ≥15°/90°
Lifting motion: 450 mm
Lateral tilt: ≥25°
Trendelenburg & reverse trendelenburg: ≥35°
Horizontal sliding movement: ≥300 mm
Emergency electric brake: Yes
Flex/reflex feature: Yes
Built-in battery system: Yes, 2-3 hours
Kidney bridge: 120 mm

Technical specifications

• Model: SXD8804-B
• Brand: Suxin
• Code: 9402900000
• Material: 304 stainless steel (main parts); large parts: 0Cr18Ni9 stainless steel
• Table size (L×W): 2100 × 550 mm
• Height range: 650–1100 mm
• Lifting stroke: 450 mm
• Back plate up folding: ≥85°; down folding: ≥30°
• Head plate angle: ≥30°–90°
• Leg plate angle: ≥15° / 90°
• Lateral tilt: ≥25°
• Trendelenburg / reverse Trendelenburg: ≥35°
• Horizontal sliding: ≥300 mm
• Emergency electric brake: Yes
• Flex/reflex: Yes
• Built-in battery: Yes (2–3 hours)
• Kidney bridge height: 120 mm
