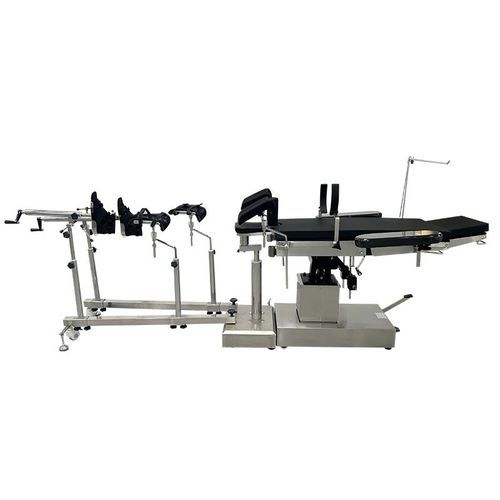

Universal operating table SXS3001-II

gynecologicalorthopedicophthalmic

Product Overview
SXS3001-II is designed for procedures on the head, neck, thorax, abdomen, perineum and limbs and is suitable for obstetrics, ophthalmology, otolaryngology, orthopedics and other surgical specialties. The tabletop is radiolucent to permit intraoperative X-ray imaging with a C-ARM.

Unique features

• Antistatic, radiolucent tabletop surface compatible with fluoroscopy.
• Leg plate equipped with air spring and gravity compensation for smooth manual adjustment.
• Electric horizontal sliding ≥300 mm to expand X-ray access area.
• Detachable leg plate can be rotated outward and folded manually for urology procedures.
• Detachable head plate enhances flexibility in the operating room layout.
• Main construction in stainless steel for ease of cleaning and contamination control.
• Base can be fixed or moved freely; equipped with mute casters and a brake pedal.
• Movements: lift, Trendelenburg, reverse Trendelenburg, lateral tilt (Trendelenburg/reverse & lateral tilt optional), back plate adjustment and horizontal sliding.
• Compatible with an attachable traction frame set for orthopedic traction procedures.

Technical parameters
Table size: 2100 (±20) × 500 (±20) mm
Table height: 700 (±20) – 950 (±20) mm
Lateral tilt: ≥18°
Trendelenburg / reverse Trendelenburg: ≥20°
Back plate up/down folding: ≥70° / 15°
Head plate adjustment: 30°–90°
Kidney bridge adjustment: ≥100 mm
Electric horizontal sliding: ≥300 mm
Leg plate (up/down/outwards): ≥15° / 90° / 90°

Configuration
1. Table body — Qty: 1 — Unit: set
2. Mattress — Qty: 1 — Unit: set
3. Anesthetic screen — Qty: 1 — Unit: set
5. Hand support — Qty: 2 — Unit: pcs
6. Leg support — Qty: 2 — Unit: pcs
7. Kidney bridge — Qty: 2 — Unit: pcs
8. Foot support — Qty: 2 — Unit: pcs
9. Operation manual — Qty: 1 — Unit: set

Product brief
Product size: 2100 × 500 × 750 mm
MOQ: 1 PC

Technical specifications

• Model: SXS3001-II
• Brand: SUXIN MEDICAL
• HS code: 9402900000
• Table size: 2100 (±20) × 500 (±20) mm
• Table height range: 700 (±20) – 950 (±20) mm
• Lateral tilt: ≥18°
• Trendelenburg / Reverse Trendelenburg: ≥20°
• Back plate fold: ≥70° / 15°
• Head plate adjustment: 30°–90°
• Kidney bridge travel: ≥100 mm
• Electric horizontal sliding: ≥300 mm
• Leg plate motions: up/down ≥15°, outward rotation 90°, fold 90°
• Construction: mainly stainless steel; antistatic radiolucent tabletop
• Mobility: base can be fixed or moved; includes mute casters and brake pedal
