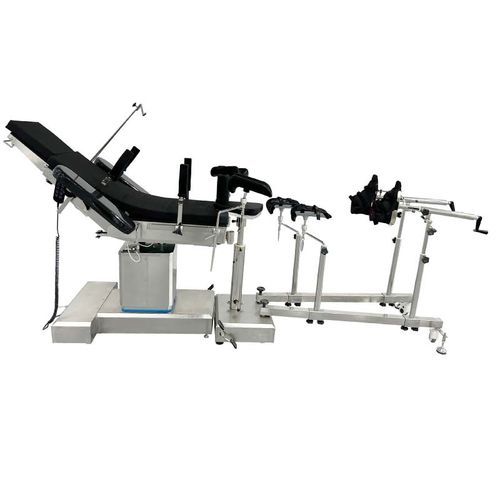

Universal operating table SXD8804-A

gynecologicalorthopedicophthalmic

Overview

• High 304 stainless steel electric operating table supplied with floor mobile traction frame set
• Table size: 2100 × 500 × 750 mm (tolerances indicated in technical parameters)
• Minimum order quantity: 1 PC

Product description

• Intended for a wide range of surgical procedures, including orthopedic interventions.
• Key features:
• X‑ray C‑arm compatible tabletop suitable for intraoperative imaging.
• Top panel made of imported acrylic plate with radiolucent properties.
• T‑base with swivel castors for stable positioning and controlled mobility.
• Compatible with the supplied floor mobile traction frame set for traction procedures.
• Memory sponge mattress designed for easy cleaning and disinfection.
• International standard side rails for accessory attachment and modular configuration.
• Built‑in emergency battery backup to maintain operation during power failure (2–4 hours).

Technical parameters
Table size: 2100 (±20) × 500 (±20) mm
Table height: 750 (±20) - 1050 (±20) mm
Lateral tilt: ≥ 20° (electric)
Trendelenburg & reverse Trendelenburg: ≥ 25° (electric)
Battery system: 2–4 hours
Back plate folding up/down: ≥ 80° / 30°
Head plate adjustment: 30° – 90°
Kidney bridge adjustment: ≥ 120 mm
Electric horizontal sliding: ≥ 300 mm
Leg plate (up/down/outwards): ≥ 15° / 90° / 90°


Configuration

• Table body — Qty: 1 — Unit: set
• Mattress — Qty: 1 — Unit: set
• Motor — Qty: 6 — Unit: sets
• Anesthetic screen — Qty: 1 — Unit: set
• Hand support — Qty: 2 — Unit: pcs
• Leg support — Qty: 2 — Unit: pcs
• Kidney bridge — Qty: 2 — Unit: pcs
• Hand remote — Qty: 1 — Unit: pc
• Battery system — Qty: 2 — Unit: pcs
• Operation manual — Qty: 1 — Unit: set

Specifications

• Model: SXD8804-A
• Brand: SUXIN MEDICAL
• Code: 940290
• Material: high 304 stainless steel (bed frame)
• Top material: imported acrylic plate (radiolucent tabletop)
• Mattress: memory sponge mattress (easy to clean/disinfect)
• Base: T‑base with swivel castors for stability
• Accessories: international standard side rails; compatible with traction frame set
• Emergency power: built‑in battery backup (2–4 hours)
• Adjustments: lateral tilt, Trendelenburg/reverse Trendelenburg, back/head/leg plate adjustments, kidney bridge, electric horizontal sliding
