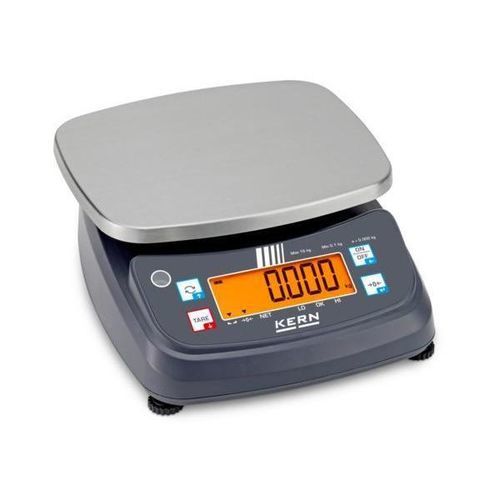

Electronic weighing scale FPB 15K-3M

for food industry applicationsplatformcompact

Short description
Robust bench scale with IP68/IP69K protection and a checkweighing display. Stainless steel weighing plate for easy and hygienic cleaning. Rechargeable battery pack and mains power supply included for continuous operation. Compact and lightweight design suitable for use at multiple locations. Checkweighing with programmable lower and upper limits (input in g, pieces or %), colour-changing display for under/ok/over. Integrated piece-counting function with storable piece weight. Sleep function (automatic energy-saving mode after adjustable inactivity). Conformity assessment / verification possible ex works (NAWI 2014/31/EU).

Features

• Complete device protection: IP68 / IP69K — designed for demanding and hygienic environments
• Stainless steel weighing plate — simple, hygienic cleaning
• Rechargeable battery pack and mains adapter included — continuous operation even while charging
• Portable use due to rechargeable battery and compact construction
• Checkweighing (tolerance weighing) — programmable lower and upper limits, input in g, pieces or %, visual and acoustic signals
• Integrated piece counting with storable reference weight
• Automatic sleep mode for energy saving
• Conformity assessment / legal verification possible ex works (option)

Technical data (summary)
Weighing capacity [Max]: 15 kg
Readability [d]: 0.005 kg
Verification scale interval [e]: 0.005 kg
Units: kg, g, PCS
Minimum weight [Min]: 0.1 kg
Weighing platform dimensions (W×D×H): 230×190×20 mm
Weighing surface dimensions (W×D): 190×230 mm
Reproducibility: 0.005 kg
Linearity: ± 0.015 kg
Operating ambient temperature: -10 °C – 40 °C
Smallest piece weight for piece counting (normal conditions): 50 g
Display type: LCD, digit height 25 mm
Material weighing plate: stainless steel
Material housing: stainless steel, plastic
Net weight approx.: 2.2 kg
IP protection - complete device: IP68, IP69K
Construction type: Single-range balance
GTIN / EAN: 4045761488540

Applications

• Food industry and production lines
• Hygienic areas and wash-down environments
• Packaging and portioning
• Laboratory and QC stations
• Chemical handling (non-corrosive products)
• Pharmaceutical production and sampling

Characteristics / technical specifications

• Model: FPB 15K-3M
• Maximum capacity: 15 kg
• Readability (d): 0.005 kg
• Verification interval (e): 0.005 kg
• Selectable units: kg, g, PCS
• Minimum weighing weight: 0.1 kg
• Weighing platform: 230 × 190 × 20 mm
• Weighing surface: 190 × 230 mm
• Reproducibility: 0.005 kg
• Linearity: ± 0.015 kg
• Operating temp.: -10 °C to 40 °C
• Smallest piece for counting: 50 g (normal conditions)
• Display: LCD, digit height 25 mm
• Materials: stainless steel weighing plate; stainless steel/plastic housing
• IP rating: IP68 / IP69K (complete device)
• Construction: single-range balance
• Net weight approx.: 2.2 kg
• GTIN / EAN: 4045761488540
