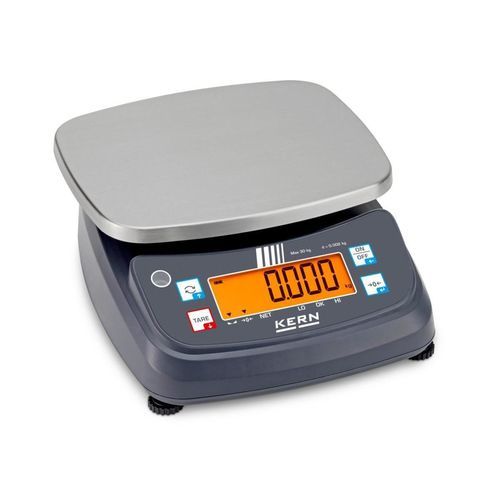

Electronic weighing scale FPB 30K-3

dosingfor food industry applicationsplatform

Description

• Robust bench scale with IP68/IP69K protection and checkweighing display for visual under/within/over indication.
• Stainless steel weighing plate for hygienic, easy cleaning; housing in stainless steel and plastic.
• Rechargeable battery pack and power supply included for continuous operation and portability between sites.
• Compact, lightweight single-range construction suitable for harsh environments and mobile use.
• Checkweighing: programmable lower and upper limits; input in g, pieces or %; color change supports dosing, portioning and sorting.
• Integrated piece-counting with storable reference weight; smallest piece weight in normal conditions: 20 g.
• Sleep function: automatic energy-saving mode after adjustable inactivity period.

Applications

• Food industry
• Hygiene areas
• Packaging industry
• Laboratory applications
• Chemical industry
• Pharmaceutical industry

Technical data (extracted)
Weighing capacity [Max]: 30 kg
Readability [d]: 0,002 kg
Units: kg, g, lb, oz, PCS, tJ, lb:oz
Dimensions weighing platform (W×D×H): 230×190×20 mm
Dimensions weighing surface (W×D): 190×230 mm
Reproducibility: 0,002 kg
Linearity: ± 0,006 kg
Ambient temperature: -10 °C – 40 °C
Smallest piece weight when piece counting - normal conditions: 20 g
Display type: LCD
Display digit height: 25 mm
Material weighing plate: stainless steel
Material housing: stainless steel, plastic
Tolerance weighing: yes (visual)
Net weight approx.: 2.2 kg
IP protection - complete device: IP68, IP69K
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761488489

Features / technical specifications

• Model: FPB 30K-3
• Weighing capacity: 30 kg
• Readability: 0,002 kg
• Weighing platform dimensions (W×D×H): 230×190×20 mm
• Weighing surface (W×D): 190×230 mm
• Units supported: kg, g, lb, oz, PCS, tJ, lb:oz
• Stainless steel weighing plate
• IP rating: IP68 / IP69K (complete device)
• Display: LCD, digit height 25 mm
• Power: rechargeable battery pack included + power supply
• Functions: checkweighing (tolerance range), piece counting, sleep function
• Operating ambient temperature: -10 °C to 40 °C
• Net weight approx.: 2.2 kg
• EAN / GTIN: 4045761488489
