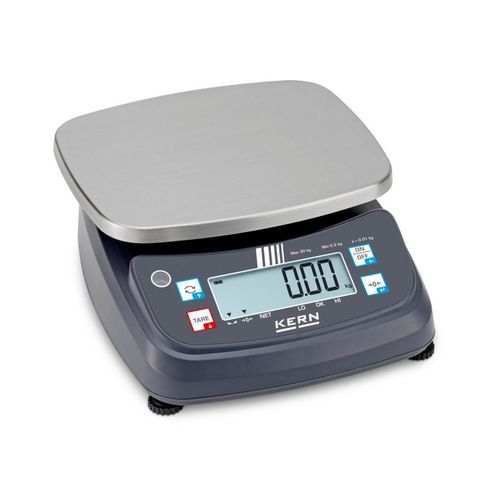

Electronic weighing scale FPE 30K-2M

dosingfor food industry applicationsplatform

Short description

• Entry-level bench scale with stainless steel weighing plate and checkweighing function (limit-based tolerance weighing).
• Integrated piece-counting function with storable piece weight.
• Sleep function: automatic energy-saving mode after adjustable inactivity period; optional battery operation.

Features

• Checkweighing: programmable lower and upper limit values for dosing, portioning, sorting, fill-to-target and classification; supported by visual and/or acoustic signal.
• Hygienic stainless steel weighing plate for easy cleaning.
• Units selectable: kg, g, PCS; external adjustment (calibration) possible.
• Display: LCD with 25 mm digit height; compact stainless steel/plastic housing.

Technical data (table)
Weighing capacity [Max]: 30 kg
Readability [d]: 0.01 kg
Verification scale interval [e]: 0.01 kg
Units: kg, g, PCS
Minimum weight [Min]: 0.2 kg
Dimensions weighing platform (W×D×H): 230×190×20 mm
Dimensions weighing surface (W×D): 190×230 mm
Reproducibility: 0.01 kg
Linearity: ± 0.03 kg
Ambient temperature: -10 °C – 40 °C
Smallest piece weight when piece counting - normal conditions: 100 g
Conformity assessment possible ex works: yes
Display type: LCD
Display digit height: 25 mm
Material weighing plate: stainless steel
Material housing: stainless steel, plastic
Tolerance weighing: yes (visual signal)
Net weight approx.: 1.8 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761488625

Applications

• Food industry
• Gastronomy
• Dietetics
• Educational institutions

Accessories (examples)

• Rechargeable battery YKR-07-A (Li-Ion, 3.7 V, 4000 mAh) — optional

Services (examples)

• Adjustment/calibration at installation site (art.-nr. 961-248)
• DAkkS calibration certificate (art.-nr. 963-128)
• Manufacturer specification confirmation (with DAkkS certificate) (art.-nr. 969-517)
• Verification / conformity assessment according to NAWI (2014/31/EU) (art.-nr. 965-228)

Characteristics / technical specifications

• Model series: FPE
• Model: FPE 30K-2M
• Weighing capacity (Max): 30 kg
• Readability: 0.01 kg
• Verification interval (e): 0.01 kg
• Minimum weight: 0.2 kg
• Weighing plate dimensions: 230×190×20 mm (weighing surface 190×230 mm)
• Units: kg, g, PCS
• Piece counting: smallest piece weight (normal conditions) 100 g
• Reproducibility: 0.01 kg
• Linearity: ± 0.03 kg
• Display: LCD, digit height 25 mm
• Materials: stainless steel weighing plate; housing stainless steel + plastic
• Net weight approx.: 1.8 kg
• Operating ambient temperature: -10 °C to 40 °C
• Conformity assessment/verification: possible ex works (factory option)
• GTIN / EAN: 4045761488625
