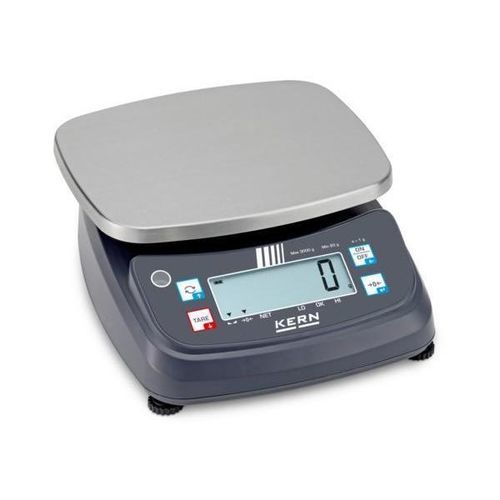

Electronic weighing scale FPE 3K-3M

dosingfor food industry applicationsplatform

Product overview
Entry-level bench scale from the FPE product family with stainless steel weighing plate, checkweighing and integrated piece-counting functions. Selectable units and an automatic sleep (energy-saving) function. Conformity assessment (verification) can be ordered ex works.

Features

• Checkweighing: programmable lower and upper limits; display can show grams, pieces or %; visual (and acoustic where applicable) signal aids dosing, portioning, sorting and classification.
• Stainless steel weighing plate for hygienic and easy cleaning.
• Integrated piece-counting with storable reference piece weight.
• Sleep function: automatic energy-saving mode after adjustable inactivity period.
• Units switchable: kg, g, PCS.

Technical Data (summary)
Weighing capacity [Max]: 3000 g
Readability [d]: 1 g
Verification scale interval [e]: 1 g
Minimum weight [Min]: 20 g
Dimensions weighing platform (W×D×H): 230×190×20 mm
Weighing surface (W×D): 190×230 mm
Reproducibility: 1 g
Linearity: ± 3 g
Ambient temperature: -10 °C – 40 °C
Smallest piece weight for counting (normal): 10 g
Conformity assessment ex works: yes
Display: LCD, digit height 25 mm
Material weighing plate: stainless steel
Material housing: stainless steel, plastic
Net weight approx.: 1.8 kg
Construction type: Single-range balance

Applications

• Food industry
• Gastronomy
• Dietetics
• Educational institutions

Ordering / verification note

• If application requires verification (NAWI 2014/31/EU), order conformity assessment together with the main item; retroactive verification is not possible.
• Factory verification is carried out according to the specified place of use.

Characteristics / technical specifications

• Model / series: FPE 3K-3M
• Weighing capacity (Max): 3000 g
• Readability: 1 g
• Verification scale interval (e): 1 g
• Units: kg, g, PCS
• Minimum weight: 20 g
• Weighing platform dimensions (W×D×H): 230×190×20 mm
• Weighing surface (W×D): 190×230 mm
• Reproducibility: 1 g
• Linearity: ± 3 g
• Ambient temperature range: -10 °C – 40 °C
• Smallest piece weight for counting: 10 g
• Display: LCD, digit height 25 mm
• Weighing plate material: stainless steel
• Housing material: stainless steel, plastic
• Net weight approx.: 1.8 kg
• GTIN / EAN: 4045761488601
