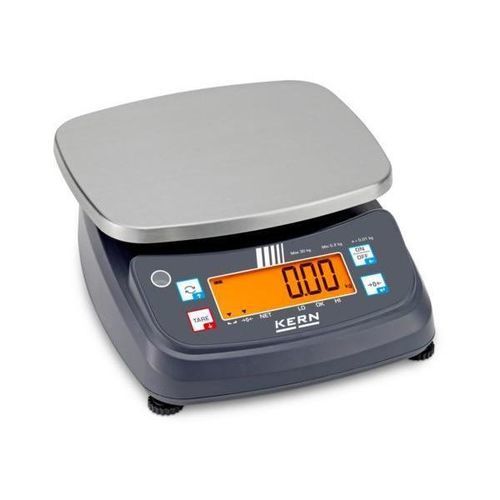

Electronic weighing scale FPB 30K-2M

dosingfor food industry applicationsplatform

Overview

• Bench scale with dust and splash protection IP68/IP69K for harsh industrial environments.
• Stainless steel weighing plate for hygienic and easy cleaning.
• Rechargeable battery pack and power supply included; continuous operation possible even during charging; suitable for mobile use and multi-site applications.
• Checkweighing with programmable lower and upper limits; display colour changes to indicate too light / OK / too heavy to support portioning, dosing, sorting and classification.
• Integrated piece-counting function with storable reference piece weight (PCS).
• Sleep function: automatic energy-saving mode after adjustable inactivity period.

Technical Data (summary)
Weighing capacity [Max]: 30 kg
Readability [d]: 0.01 kg
Verification scale interval [e]: 0.01 kg
Units: kg, g, PCS
Minimum weight [Min]: 0.2 kg
Dimensions weighing platform (W×D×H): 230×190×20 mm
Dimensions weighing surface (W×D): 190×230 mm
Reproducibility: 0.01 kg
Linearity: ± 0.03 kg

Applications

• Food industry
• Hygiene-sensitive environments
• Packaging industry
• Laboratory applications
• Chemical industry
• Pharmaceutical industry

Accessories (selected)

• Rechargeable battery pack YKR-07-A (Li-Ion, 3.7 V, 4,000 mAh) — Art.-Nr. YKR-07-A
• Factory options and service items available (e.g. DAkkS calibration certificate, conformity assessment / verification) — selectable as factory options.

Specifications / technical data

• Model: FPB 30K-2M (bench scale)
• Protection: IP68, IP69K (complete device)
• Weighing capacity: 30 kg
• Readability / Verification interval: 0.01 kg
• Units: kg, g, PCS
• Minimum weight: 0.2 kg
• Smallest piece weight for counting (normal conditions): 100 g
• Weighing platform dimensions (W×D×H): 230×190×20 mm
• Weighing surface (W×D): 190×230 mm
• Reproducibility: 0.01 kg
• Linearity: ± 0.03 kg
• Ambient temperature range: -10 °C – 40 °C
• Display type: LCD, digit height 25 mm
• Material weighing plate: stainless steel
• Material housing: stainless steel, plastic
• Tolerance weighing / checkweighing: visual signal (display colour change)
• Net weight (approx.): 2.2 kg
• Construction type: single-range balance
• Power supply: rechargeable battery and mains adapter included
• Conformity assessment / verification: possible ex works (factory option)
• GTIN / EAN: 4045761488557
