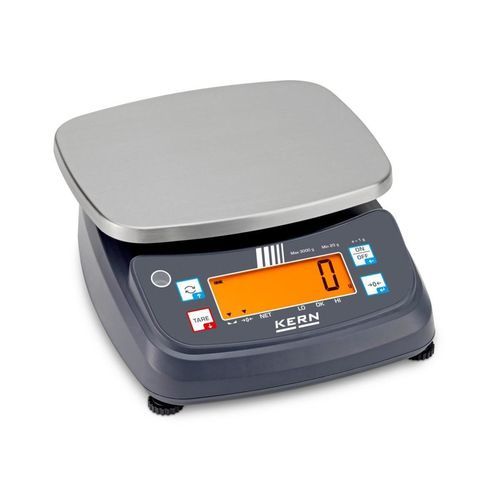

Electronic weighing scale FPB 3K-3M

dosingfor food industry applicationsplatform

Short description

• Bench scale FPB 3K-3M with dust and splash protection IP68/IP69K, designed for rough and hygienic environments.
• Stainless steel weighing plate (230×190×20 mm) for easy and hygienic cleaning.
• Rechargeable battery pack and power supply included for continuous operation, even during charging.
• Compact, lightweight construction suitable for mobile use across multiple locations.
• Checkweighing / tolerance weighing: programmable lower and upper limit values; display changes colour according to weight to assist portioning, dosing and grading.
• Integrated piece-counting function with storable reference piece weight.
• Sleep function: automatic energy-saving mode after an adjustable inactivity period.

Applications

• Food industry
• Hygiene-sensitive areas
• Packaging industry
• Laboratory use
• Chemical industry
• Pharmaceutical industry

Technical Data (summary)
Weighing capacity [Max]: 3000 g
Readability [d]: 1 g
Verification scale interval [e]: 1 g
Units: kg, g, PCS
Minimum weight [Min]: 20 g
Dimensions weighing platform (W×D×H): 230×190×20 mm
Dimensions weighing surface (W×D): 190×230 mm
Reproducibility: 1 g
Linearity: ± 3 g
Ambient temperature: -10 °C – 40 °C
Smallest piece weight when piece counting - normal conditions: 10 g
Conformity assessment possible ex works: yes
Display type: LCD, digit height: 25 mm
Material weighing plate: stainless steel
Material housing: stainless steel, plastic
Tolerance weighing: visual
Net weight approx.: 2.2 kg
IP protection - complete device: IP68, IP69K
Construction type: Single-range balance
GTIN/EAN number: 4045761488533


Characteristics / technical specifications

• Model: FPB 3K-3M
• Weighing capacity: 3000 g
• Readability: 1 g
• Verification scale interval: 1 g
• Units: kg, g, PCS
• Minimum weight: 20 g
• Weighing platform dimensions: 230×190×20 mm
• Weighing surface dimensions: 190×230 mm
• Reproducibility: 1 g
• Linearity: ± 3 g
• Operating temperature range: -10 °C – 40 °C
• Smallest piece weight for counting: 10 g
• Display: LCD, 25 mm digit height
• Weighing plate material: stainless steel
• Housing material: stainless steel, plastic
• IP protection: IP68, IP69K (complete device)
• Power supply: rechargeable battery + mains adapter included
• Net weight: approx. 2.2 kg
• Construction: single-range balance
• GTIN / EAN: 4045761488533
