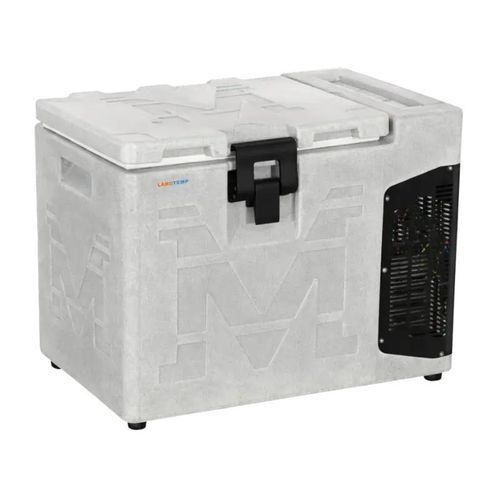

Vaccine freezer BPF-01B

for hospitalsblood bankfor blood plasma

Product Overview
Labotemp Biomedical Freezer BPF-01B is a high-performance medical-grade freezer designed for the safe storage of blood plasma, vaccines, biological samples, reagents, and temperature-sensitive pharmaceuticals. Engineered for labs, blood banks, hospitals, and research centers, this biomedical freezer ensures precise temperature control and reliable preservation of critical samples. Equipped with a microprocessor controller, digital display, and high-efficiency forced-air cooling system, the BPF-01B provides uniform temperature distribution and stable performance. The wide temperature range (-25°C to +30°C), audible and visual alarm system, and power failure protection ensure maximum safety and compliance. Its compact, durable PE cabinet design, low noise operation, and AC/DC compatibility make it ideal for both stationary and mobile cold chain applications. Optional data logging and USB interface further enhance monitoring and traceability for sensitive biomedical storage.

Key Benefits

• Precision cooling with 0.1°C microprocessor control for stable temperature.
• Audible and visual alarms and power-failure protection to safeguard samples.
• Forced-air cooling for uniform temperature distribution.
• Compact, durable PE cabinet suitable for stationary and mobile cold chain use.

Features

• Precision Temp Control
• Microprocessor-based control with 0.1°C temperature resolution
• Wide temperature range (-25°C to +30°C)
• Forced-air cooling system for uniform temperature distribution
• Digital display for real-time monitoring
• Audible & visual alarm system
• Power failure alarm (up to 8 hours backup alert)
• Integrated PE cabinet with high durability and corrosion resistance
• Auto cooling & heating system for stable performance in varying climates
• Wide voltage compatibility (AC/DC operation)
• Low noise operation (45 dB)

Applications

• Cold chain transport and storage of vaccines, blood products, reagents, and biological samples requiring controlled temperatures from -25°C to +30°C.
• Ideal for hospitals, diagnostic labs, research facilities, field sampling, and pharmaceutical distribution where AC/DC operation, portability, and alarm-monitored conditions ensure sample integrity and compliance.

Optional Accessories

• USB Port
• Temperature Data Logger

Specifications (table)
Temperature Range : -25°C to +30°C
Capacity : 30 L
Ambient Temperature : 10°C to 32°C
Voltage & Frequency : AC 220V±10%, 50/60Hz; DC 12V
Internal Dimensions (W×D×H) : 364×253×353 mm
External Dimensions (W×D×H) : 615×370×472 mm
Noise Level : 45 dB
Controller : Microprocessor
Display : Digital
Power : 80 W
Electric Current : DC 6.5 A
Power Consumption : 1.2 kWh/24h
Refrigeration Type : Forced-air cooling
Defrost : Manual
Refrigerant : R134a
Door Type : PE Foamed Solid Door (1)
Inner Cabinet Material : PE
Outer Cabinet Material : PE
Insulation Material : PURF (55 mm)
Alarms : High/Low Temp, Power Failure (8h), Sensor & Controller Error
Packing Size (W×D×H) : 670×440×540 mm
Net Weight : 22 kg
Gross Weight : 26 kg

Caractéristiques / spécifications techniques

• Temperature Range: -25°C to +30°C
• Capacity: 30 L
• Ambient Temperature: 10°C to 32°C
• Voltage & Frequency: AC 220V±10%, 50/60Hz; DC 12V
• Internal Dimensions (W×D×H): 364×253×353 mm
• External Dimensions (W×D×H): 615×370×472 mm
• Noise Level: 45 dB
• Controller: Microprocessor
• Display: Digital
• Power: 80 W
• Electric Current: DC 6.5 A
• Power Consumption: 1.2 kWh/24h
• Refrigeration Type: Forced-air cooling
• Defrost: Manual
• Refrigerant: R134a
• Door Type: PE Foamed Solid Door (1)
• Inner Cabinet Material: PE
• Outer Cabinet Material: PE
• Insulation Material: PURF (55 mm)
• Alarms: High/Low Temp, Power Failure (8h), Sensor & Controller Error
• Packing Size (W×D×H): 670×440×540 mm
• Net Weight: 22 kg
• Gross Weight: 26 kg
