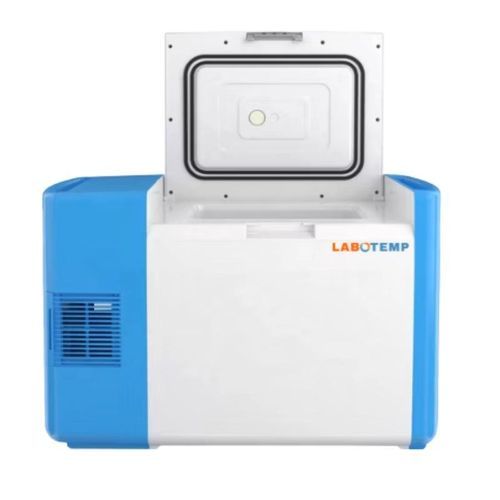

Vaccine freezer BPF-04

hospitalfor blood plasmalaboratory

Product Overview
Labotemp Biomedical and Plasma Freezer BPF-04 is a compact ultra-low temperature freezer designed for secure storage of vaccines, plasma and biological samples. With a 25 L capacity and adjustable temperature range from -40 °C to -65 °C, it is suitable for hospitals, laboratories and field medical units. The unit features a SECOP (DANFOSS) compressor, electronic temperature control with digital display, audible and visual alarms, and dual AC/DC power capability for continuous operation.

Key Features

• -65 °C freezing capability (adjustable from -40 °C)
• SECOP (DANFOSS) compressor for fast cooling and stable operation
• Dual power: 220 V 50 Hz or DC 12/24 V (AC/DC)
• PE exterior and 304 stainless steel inner chamber for hygiene and corrosion resistance
• Audible and visual alarms for temperature deviations and system alerts
• Electronic temperature control with digital display and PTC probe
• Fluorine-free, energy-efficient refrigerant
• 100 mm insulation thickness for improved temperature retention
• Single-compressor refrigeration system with EBM condenser fan

Applications

• Storage and transport of vaccines, plasma and biological samples in hospitals, laboratories and field medical units requiring -40 °C to -65 °C storage

Specifications

• Model: BPF-04
• Brand: Labotemp
• Capacity: 25 L
• Temperature range: -40 °C to -65 °C, adjustable
• Compressor: SECOP (DANFOSS)
• Voltage: 220 V 50 Hz or DC 12/24 V
• Input power: 180 W
• Protection grade: I/B
• Climate class: N
• Refrigerant: Fluorine-free environmental protection refrigerant
• Refrigeration system: Single compressor
• Temperature display: Digital
• Probe: PTC
• Condenser fan: EBM
• Exterior material: PE
• Interior material: Stainless steel 304
• Door type: Top-opening
• Insulation thickness: 100 mm
• Net weight / Gross weight: 21 / 32 kg
• External dimensions: 780 × 410 × 515 mm
• Internal dimensions: 327 × 220 × 305 mm
• Package size: 860 × 490 × 680 mm
