Vaccine freezer BPF-07

for hospitalsfor blood plasmalaboratory

Product overview

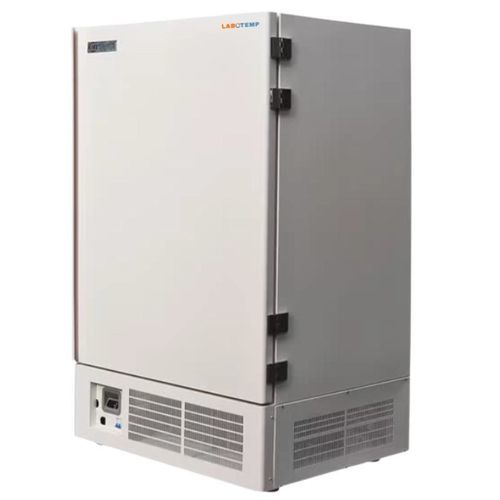

Labotemp Biomedical and Plasma Freezer BPF-07 is designed for controlled ultra-low temperature storage in clinical, laboratory and research environments. With a 308 L capacity and an adjustable temperature range from -25°C to -60°C, it is intended for secure preservation of plasma, vaccines and biological samples. The unit uses a fluorine-free refrigerant and includes audible and visual alarms for temperature and system faults.

Key benefits

• 304 stainless-steel interior and liner for hygienic storage and easy cleaning.
• 120 mm polyurethane insulation to limit heat ingress and stabilize internal temperature.
• Microprocessor control and PTC probe maintain precise setpoints across -25°C to -60°C.
• SECOP compressor combined with Germany EBM condenser fan for reliable deep-freezing performance.

Features

• SECOP (DANFOSS) compressor.
• Germany EBM condenser fan.
• Microprocessor-based electronic temperature control with digital display.
• 304 stainless-steel interior; powder-coated steel exterior.
• Audible and visual alarm for high/low temperature and system errors.
• Single-compressor refrigeration system optimized for ultra-low operation.

Standard accessories

• User manual.
• Defrosting tool.
• Protective gloves.

Applications

• Intended for hospitals, blood banks, clinical laboratories and research institutions to store plasma, vaccines, reagents and other temperature-sensitive biological materials at ultra-low temperatures.

Technical specifications

• Model: BPF-07
• Capacity: 308 L
• Temperature range: -25°C to -60°C, adjustable
• Compressor: SECOP (DANFOSS)
• Voltage: 220 V / 50 Hz
• Alarm: Audible and visual
• Input power: 550 W
• Power consumption: 8.2 kW·h / 24 h
• Protection grade: I/B
• Climate type: N
• Refrigerant: Fluorine-free environmental protection refrigerant
• Refrigeration system: Single compressor refrigeration system
• Temperature control: Electronic temperature control (microprocessor)
• Temperature display: Digital data display
• Probe: PTC
• Condenser fans: Germany brand EBM
• Exterior material: Powder-coated steel plate
• Interior material: Stainless steel 304
• Liner: Stainless steel 304
• Insulation thickness: 120 mm
• Balance hole: 1 (diameter 18 mm)
• Castors: 4
• Net weight: 160 kg
• External dimensions: 850 × 880 × 1740 mm
• Internal dimensions: 610 × 590 × 950 mm
• Package size: 910 × 940 × 1875 mm
• Loading quantity: 22 pcs / 20' GP
